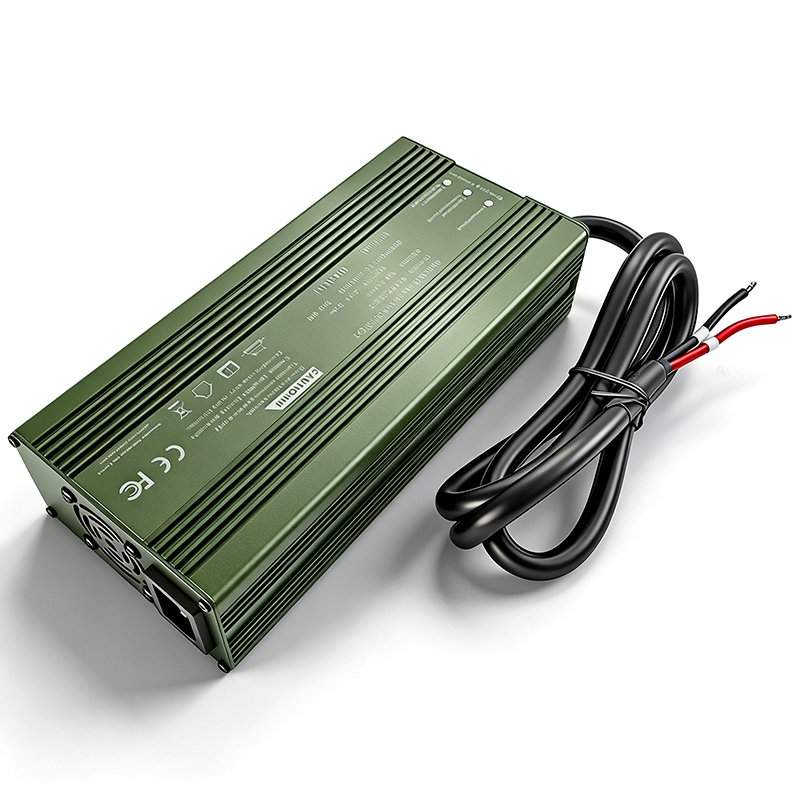

360W Professional Charger 48V 5a 6a Charger for AGM VRLA GEL Lead Acid Batteries Solar Power backup Energy Storage Battery

Quick Detail:

Brand Name:QUAWIN

Model Number:QW480-060-SM

Use:48V Lead-Acid Battery

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 58.8V

Color:Black/Army green
Shell Material:Aluminium alloy
Output voltage:58.8V

Output current:6a

Output power:352.8W
Efficiency:≧90%
Special Process: Spray Three Proof Paint

Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF≧3000H

Certification：CB CCC CE C-TICK FCC GS ICES KC PSE SAA RCM UKCA UL

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  Portable fast SLA /AGM /VRLA /GEL charger 48V Lead-acid Battery charger

Features:

  • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller

  • Constant big charging current for faster charging;

  • Automatically charging ending with Cut-Off output;

  • Metal case with Fan Cooling

  • Operating temperature:-40℃ ~ 65℃
  • Storage temperature:-40℃ ~ 85℃
  • Operating humidity:5%~90%RH
  • It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.

Specification:

  • Input: 100-240VAC 50/60Hz with PFC

  • Output: DC 58.8V
  • Charging current: 6a(Max)
  • Dimensions (mm): 204*100*55mm
  • Weight: 1400±10g(only body)

Safety protections:

  • Over current protection

  • Over voltage protection

  • Short circuit protection

  • Reverse polarity protection

  • Anti-revert current protection

  • Anti-spark protection

LED Indicator:
 Waiting Mode:LED(GREEN)  ON
 Charging Mode:LED(BLUE)   FLASH
 Full Charged Mode:LED(GREEN)  ON
 Charge Error Mode:LED(RED)   FLASH

Call us to know more details datasheet.
