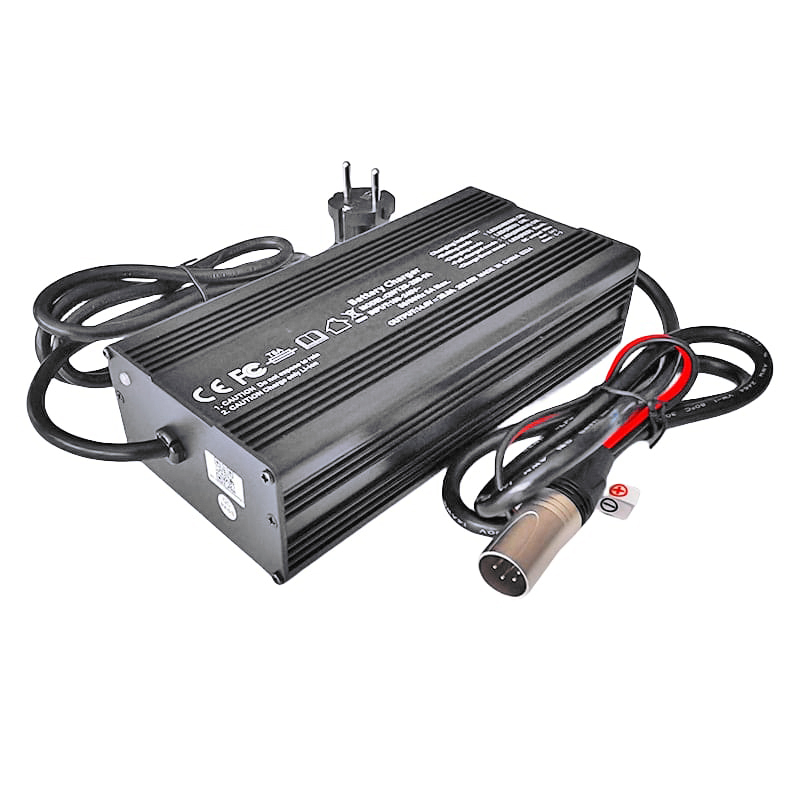

360W Battery Chargers 12.6V 16a 17a 18a 19a 20a IP56 Waterproof Charger For 3S 10.8V 11.1V 12V Electric Motorcycles Lithium ion Batteries

Quick Detail:
  Brand Name:QUAWIN
  Model Number:QW126-200-LA
  Use:3S 10.8V 11.1V 12V Li-ion or Li-polymer battery pack
  Type:Electric
  Place of Origin:Guangdong China (Mainland)
  Battery charger:automatic battery charger 16.8V
  Color:Black/Silver
  Shell Material:Aluminium alloy
  Protection grade:IP54/IP56
  Input voltage:100-240VAC 50/60Hz with PFC
  Output voltage:16.8V
  Output current:20a(Max)
  Output power:336W
  Charge mode:CC—CV(Constant Current—Constant Voltage)
  Certification：CB CCC CE C-TICK FCC GS ICES KC PSE SAA RCM UKCA UL
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

  Inner package:Corrugated box,EPE pearl cotton/according to your requirements
  Outer packing: export carton
  Delivery Detail:sample within 10 work days,25-35 days for bulk order

Specifications:

  3S 10.8V 11.1V 12V Li-ion or Lithium Polymer battery PACK

Features:

  • Charging mode:CC—CV(Constant Current—Constant Voltage)
  • High efficiency and low power consumption
  • Glue pouring process and metal shell cooling design
  • Efficiency(at 100% load): >=90%
  • Operating temperature:-20℃ ~ 45℃
  • Storage temperature:-40℃ ~ 85℃
  • Operating humidity:5%~90%RH

Specification:

  • Input: 100-240VAC 50/60Hz
  • Output: DC 16.8V
  • Charging current: 20a(Max)
  • Dimensions (mm):204*100*55
  • Weight: 2000±50g(only body)

Safety protections:

  • Over Voltage protection
  • Short Circuit protection
  • Polarity error protection
  • Over power protection
  • Overheating protection

LED Indicator:

  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
