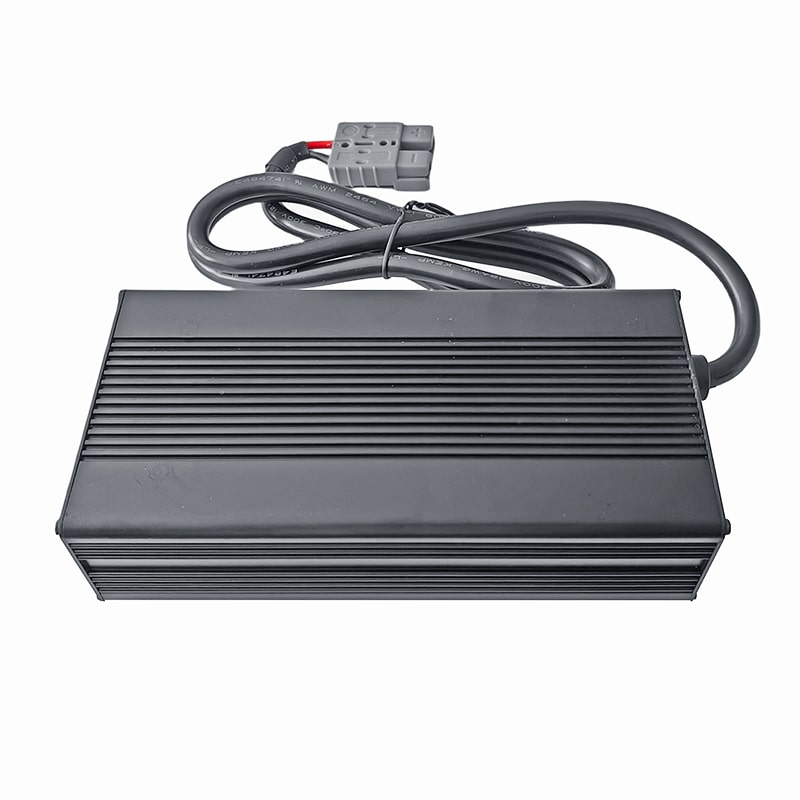

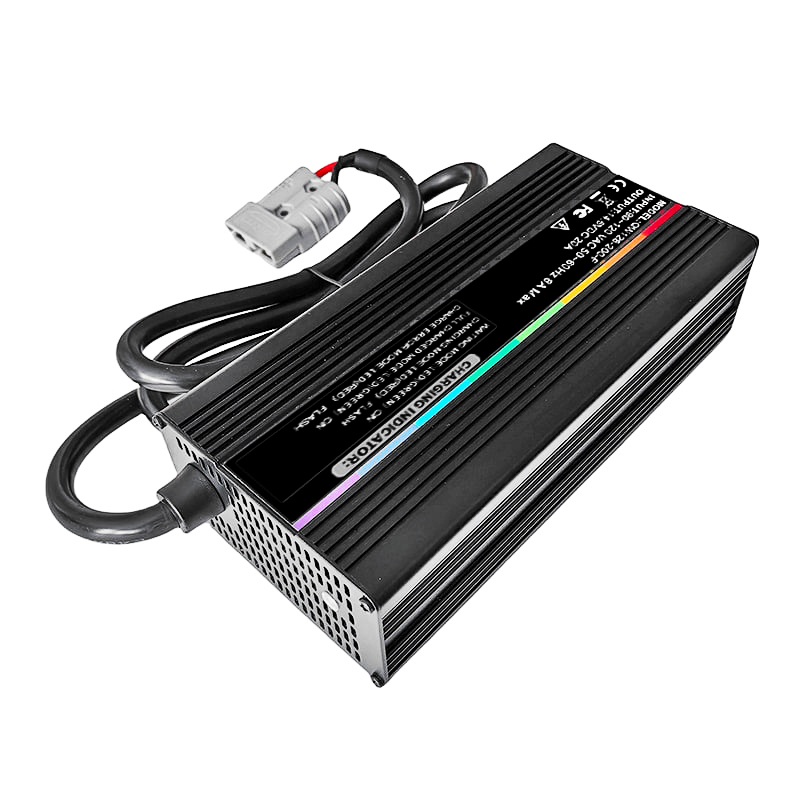

360W Battery Charger 12V 12.6V 16a 17a 18a 19a 20a Smart Charger For 3S 10.8V 11.1V lithium ion batteries Electric Motorcycles Battery Pack

Quick Detail:

  Brand Name:QUAWIN

  Model Number:QW111-200-L

  Use:3S 10.8V 11.1V 12V Li-ion or Li-polymer battery pack

  Type:Electric

  Place of Origin:Guangdong China (Mainland)

  Battery charger:automatic battery charger 12.6V

  Color:Black/Silver

  Shell Material:Aluminium alloy

  Input voltage:100-240VAC 50/60Hz with PFC

  Output voltage:12.6V

  Output current:20a(Max)

  Output power:252W
  Charge mode:CC—CV(Constant Current—Constant Voltage)

  Certification：CB CCC CE C-TICK FCC GS ICES KC PSE SAA RCM UKCA UL
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  3S 10.8V 11.1V 12V Li-ion or Lithium Polymer battery PACK

Features:
  • Charging mode:CC-CV(Constant Current-Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Efficiency(at 100% load): >=90%
  • Operating temperature:-20ºC ~ 45ºC
  • Storage temperature:-40ºC ~ 85ºC
  • Operating humidity:5%~90%RH

Specification:
  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 12.6V
  • Charging current: 20a(Max)
  • Dimensions (mm): 204*100*55
  • Weight: 1300±10g(only body)

Safety protections:
 • Over current protection
 • Over voltage protection
 • Short circuit protection
 • Reverse polarity protection
 • Anti-revert current protection
 • Anti-spark protection

LED Indicator:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
