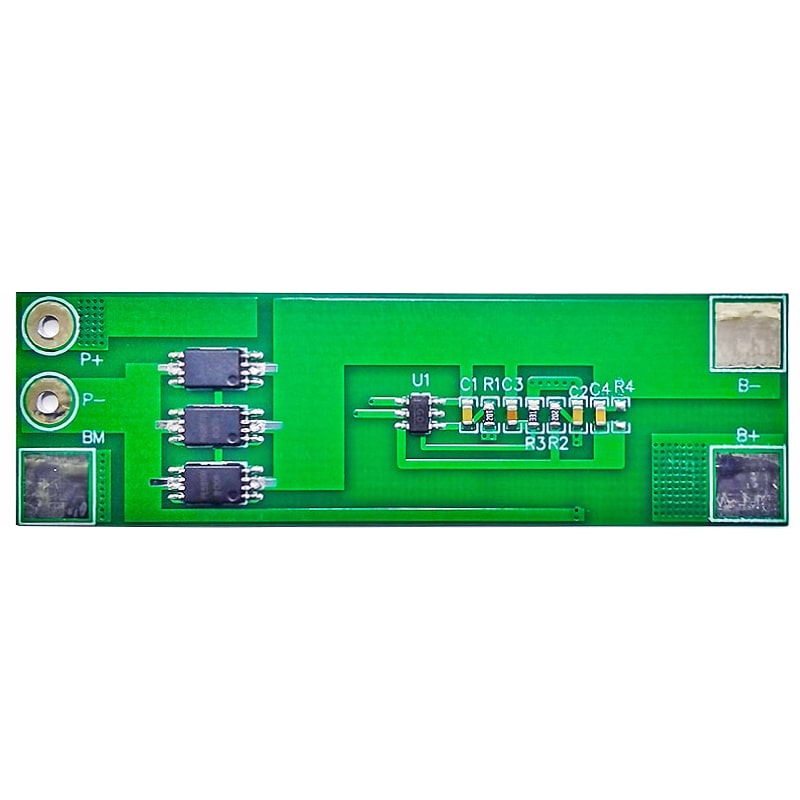

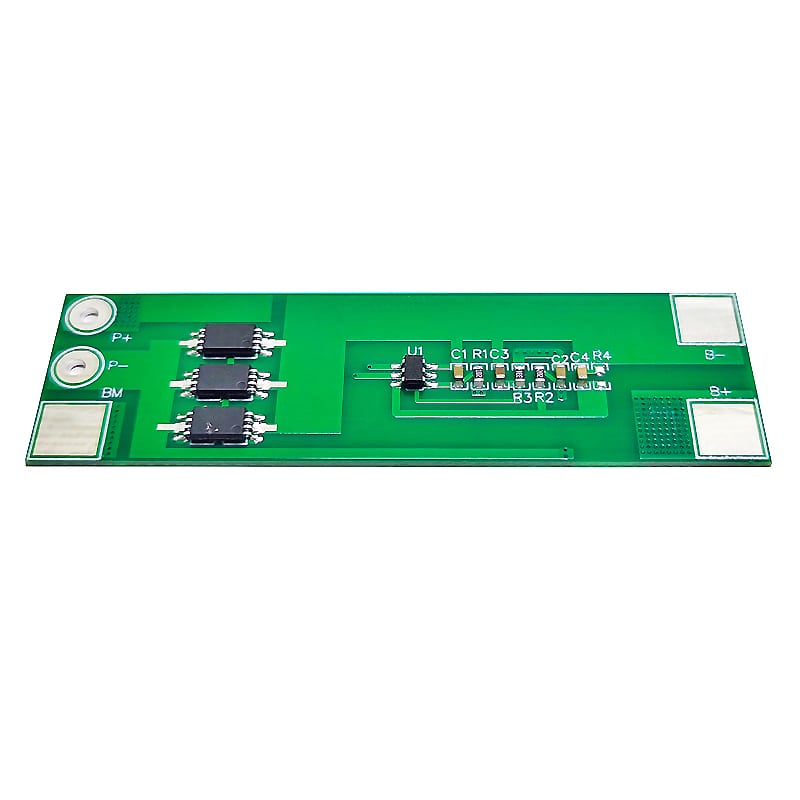

2s 7A BMS for 7.2V 7.4V Li-ion/Lithium/Li-Polymer 6V 6.4V LiFePO4 Battery Pack Size L60*W18*T2.5mm (PCM-L02S08-364)

Model No:PCM-L02S08-364
Working current:7A
Size:L60*W18*T2.5mm
Balance:NO
Availability:
Quantity:
  • PCM-L02S08-364

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 500PCS

  • 500000/Month

Technical parameter


Product name:Protection Circuit Module
Model No:PCM-L02S10-014
For 2S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 2 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 7A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. RICOH R5460 or SEIKO S-8242/S-8252 Protection IC;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-2S CC/CV:8.4V CC/CV:7.2V
Maximal continuous charging current 7A(Max)
Discharge Maximal continuous discharging current 7A(Max)
Low current consumption Current consumption on operation <20μA
Current consumption at power down <0.1μA
Cell-balance Cell-balance detection voltage / /
Cell-balance release voltage / /
Cell-balance current / /
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~300mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 16±5a(adjustable)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <20mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension L60*W18*T2.5mm
