| Quantity: | |
|---|---|
LP064-6000-F(32700)
QUAWINTEC/OEM
8507600090
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Netrual packing/Custom box with less than 10KGS
200PCS
5000000/Month
Quick Detail:
Brand Name:QUAWIN/OEM

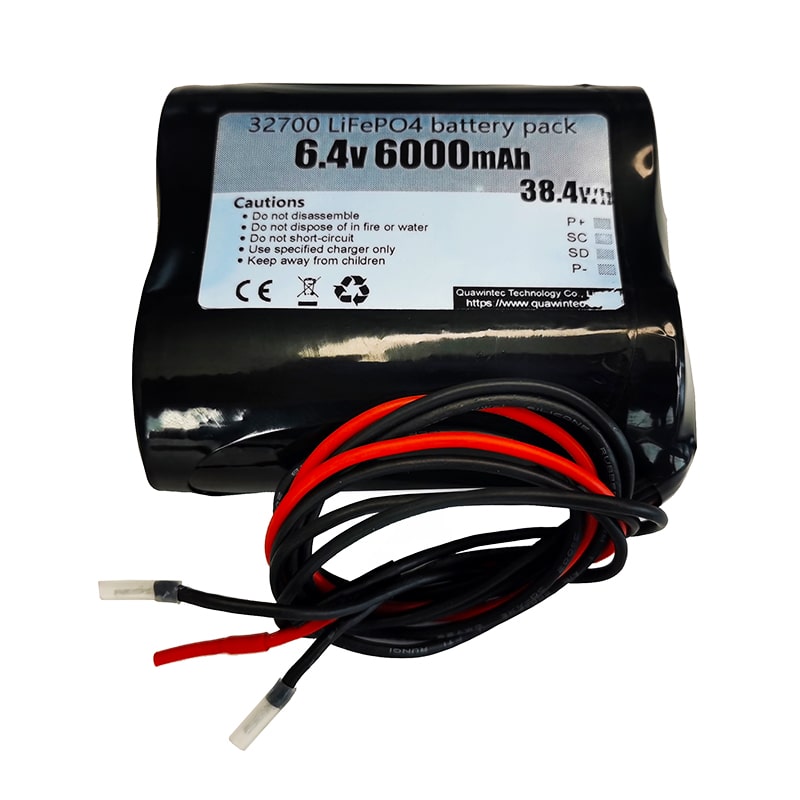

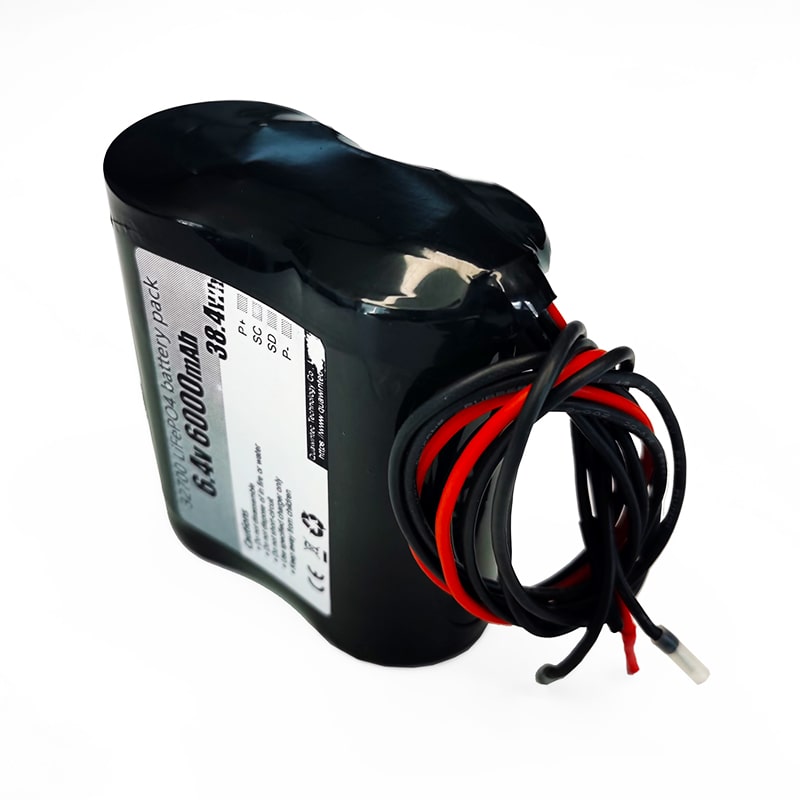

Model Number:LP064-6000-F(32700)
Type:LiFePO4 battery
Place of Origin:Guangdong China (Mainland)
Composed Type:2S1P
Nominal Voltage:6.4V
Nominal Capacity:6000mAh
Maximal Charging Current:3A(Adjust)
BMS:PCM-L02S02-F64
Output interface:P+ / P- / SC / SD
Constant Discharge Current:3A(Adjust)
Over Charger Protection Voltage(V):7.3V±0.1V
Over Discharge Protection Voltage(V):4V
Cell:domestic 6000mAh Battery
Certificate:CE,ROHS,UN38.3 REACH
Pack:Black PVC Shrink tube
Size:65(T) x 33(W) x 83(H)mm
Weight:300±5g
Charging temperature(℃):0℃～45℃；32oF～113oF
Discharging temperature(℃):-20℃～60℃；-4oF～149oF
Storage temperature(℃):-20℃～45℃；-4oF～113oF
Protection Temperature(℃):70℃±5℃
Cycle life:2000~3000 times
Warranty:12 months
Packaging & Delivery :
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Custom box with less than 10KGS
. Delivery Detail:sample within 7 work days,15~30 days for bulk order
| Recommended Charger: | QW064-030-F |
| Charger input: | 100V~240VAC 50-60Hz |
| Charging mode: | Constant voltage constant current (CC/CV) |
| Charging voltage: | 7.3V±0.2V |
| Charging current: | 3.0A±0.3A |
| Charging time: | 2-3 hrs(standard) |
| Charger working instruction: | Be in charging the red light,be full of charging the green light; |
Product Advantages:
1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150ºC thermal shock test passed
10).1.2m drop testing passed
Spotlight:
1). Provide both single cells and battery packs
2). 100% inspection before delivery
3). Inspects inner resistance,discharge platform and self-discharge
4). Manufacturer of 32650 / 32700 lifepo4 battery etc.
5). Tablished quality control systems under ISO9001
6). Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available
Shipping terms:
1). Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2). Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3). We are not responsible for any accidents, delays or other issues that are caused by the shipping.
Safety Precaution:
1). Do not throw battery into water or make it wet;
2). Keep the battery away from heat source(like fire or heater);
3). Do not throw the battery into fire or heat the battery;
4). Forbid to hammer to trample the battery;
5). Forbid disassembling the battery in anyway
Call us to know more details datasheet.
