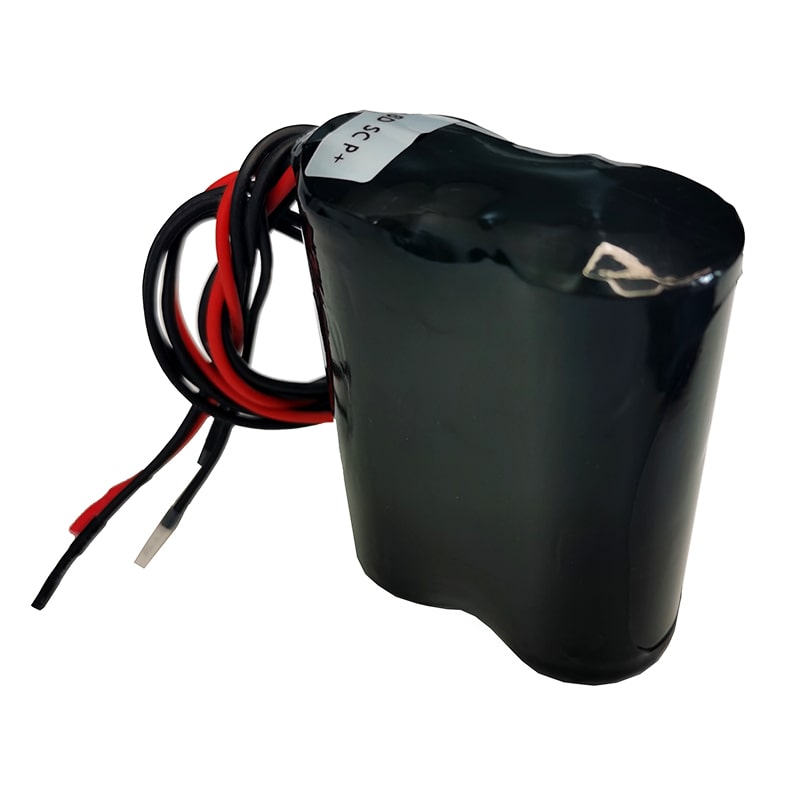

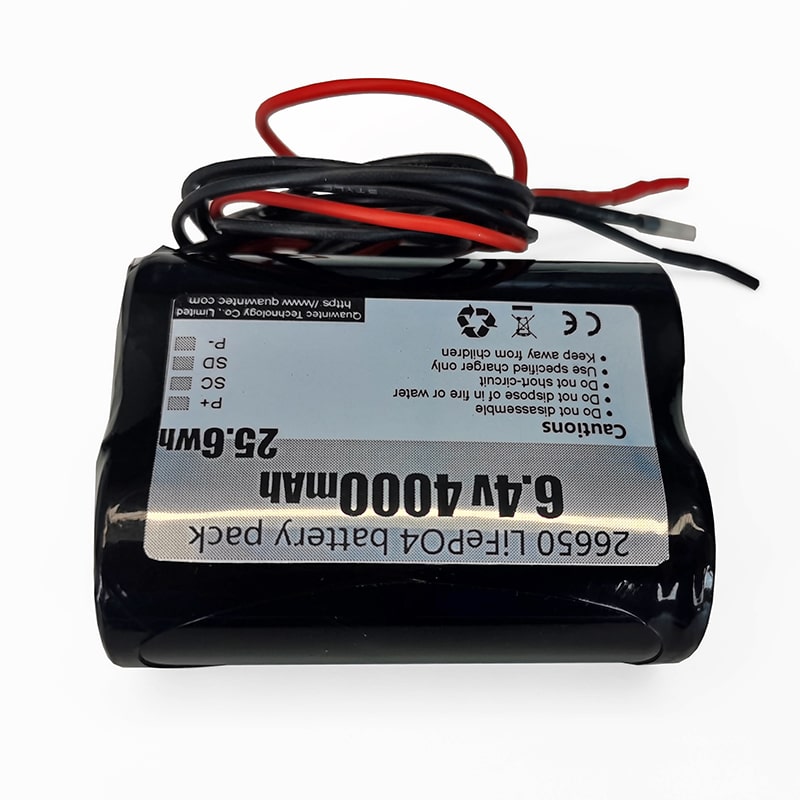

2S1P 26650 6V 6.4V 4000mAh rechargeable LiFePO4 battery pack With I2C Communication protocol

Model Number:LP064-4000-F(26650)
Battery type:LiFePO4 battery
Nominal Voltage:6-6.4V
Nominal Capacity:4000mAh
Size:54(T) x 27(W) x 73(H)mm
Weight:180±5g
Availability:
Quantity:
  • LP064-4000-F(26650)
  • QUAWINTEC/OEM
  • 8507600090
  • Shenzhen, China
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Netrual packing/Custom box with less than 10KGS
  • 500PCS
  • 5000000/Month

Quick Detail:

  Brand Name:QUAWIN/OEM

  Model Number:LP064-4000-F(26650)

  Type:LiFePO4 battery

  Place of Origin:Guangdong China (Mainland)

  Composed Type:2S1P

  Nominal Voltage:6.4V

  Nominal Capacity:4000mAh

  Maximal Charging Current:3A(Adjust)

  BMS:PCM-L02S02-F64

  Output interface:P+ / P- / SC / SD

  Constant Discharge Current:3A(Adjust)

  Over Charger Protection Voltage(V):7.3V±0.1V

  Over Discharge Protection Voltage(V):4V

  Cell:domestic 4000mAh Battery

  Certificate:CE,ROHS,UN38.3 REACH

  Pack:Black PVC Shrink tube

  Size:54(T) x 27(W) x 73(H)mm

  Weight:180±5g

  Charging temperature(℃):0℃~45℃;32oF~113oF

  Discharging temperature(℃):-20℃~60℃;-4oF~149oF

  Storage temperature(℃):-20℃~45℃;-4oF~113oF

  Protection Temperature(℃):70℃±5℃

  Cycle life:2000~3000 times

  Warranty:12 months


Packaging & Delivery :
 . Netural labels,Polybag,PVC,Color box,Customised package
 . Netrual packing/Custom box with less than 10KGS
 . Delivery Detail:sample within 7 work days,15~30 days for bulk order


Recommended Charger: QW064-020-F
Charger input: 100V~240VAC 50-60Hz
Charging mode: Constant voltage constant current (CC/CV)
Charging voltage: 7.3V±0.2V
Charging current: 2.0A±0.2A
Charging time: 2-3 hrs(standard)
Charger working instruction: Be in charging the red light,be full of charging the green light;


Product Advantages:
 1). Green product
 2). Long standby time
 3). One year warranty
 4). Excellent safety performance
 5). Excellent storage performance and low self-discharge rate
 6). Short circuit testing passed
 7). Overcharge testing passed
 8). Over discharge testing passed
 9). 150ºC thermal shock test passed
 10).1.2m drop testing passed


Spotlight:

 1). Provide both single cells and battery packs
 2). 100% inspection before delivery
 3). Inspects inner resistance,discharge platform and self-discharge
 4). Manufacturer of 26650 / 26700 lifepo4 battery etc.
 5). Tablished quality control systems under ISO9001
 6). Customized packs, tags,labels,plugs,connectors,over current protection,temperature contol protection are available


Shipping terms:

 1). Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
 2). Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
 3). We are not responsible for any accidents, delays or other issues that are caused by the shipping.


Safety Precaution:
 1). Do not throw battery into water or make it wet;
 2). Keep the battery away from heat source(like fire or heater);
 3). Do not throw the battery into fire or heat the battery;
 4). Forbid to hammer to trample the battery;
 5). Forbid disassembling the battery in anyway


Call us to know more details datasheet.
