Availability: | |
---|---|
Quantity: | |
QW2.4-7.2-005-N
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
white box/polybags/at your request outer package:carton
500PCS
50000 Pieces
Brand Name:QUAWIN
Model Number:QW2.4-7.2-005-N

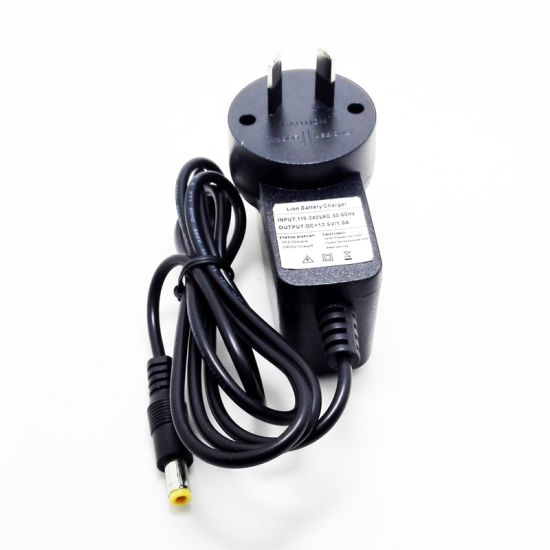

Use:2-6 Cells 2.4-7.2V NIMH NICD Battery Pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 3-9V
Certificate:CE
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:3-9V
Output current:0.5a
Output power:4.5W
Charge mode:MCU control charging process to avoid over charge
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal
Packaging & Delivery :
Specifications:
2-6 Cells 2.4-7.2V NIMH NICD Battery PACK
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=80%
• Operating temperature:-10C ~ 45C
• Storage temperature:-20C ~ 70C
• Operating humidity:5%~90%RH
Specification:
• Input: AC 100-240V 50-60Hz 1.0A
• Output: DC 3-9V
• Charging current: 0.5a
• Dimensions (mm): 74.5*41.5*28.2mm
• Weight: 80g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
(A Typical Model) | |||||
Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
QW032-020-F | (LiFePO4) | AC 100~264V | 3.2(1S) | 3.65 | 2 |
QW064-010-F | 6.4(2S) | 7.3 | 1 | ||
QW128-005-F | 12.8(4S) | 14.6 | 0.5 | ||
QW037-020-L | (Lithium) | 3.7(1S) | 4.2 | 2 | |
QW074-010-L | 7.4(2S) | 8.4 | 1 | ||
QW148-005-L | 14.8(4S) | 16.8 | 0.5 | ||
QW060-010-S | (Lead Acid) | 6(0.5S) | 7.35 | 1 | |
QW120-005-S | 12(1S) | 14.7 | 0.5 | ||
QW2.4-7.2-005-N | NIMH/NICD | 2.4~7.2(2-6S) | 3~9 | 0.5 |
