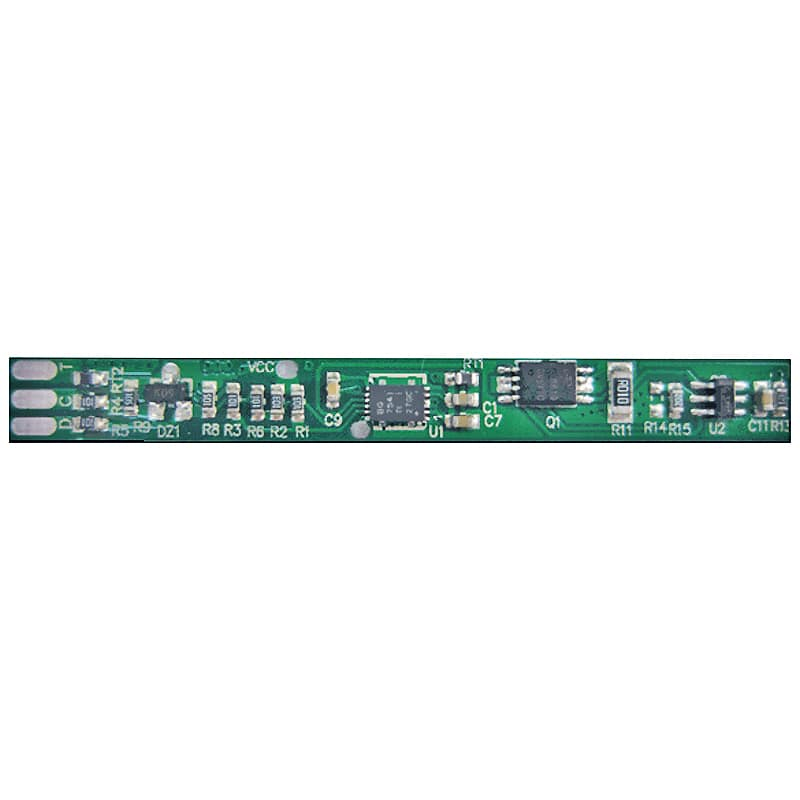

Product name:Protection Circuit Module
Model No:PCM-L01S03-B86
For 1S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 1 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 3a, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. Ti BQ27541 is adopted,Can read voltage, capacity, current, temperature, cycle times and other parameters;
No. | Test item (Test at normal temperature 25±2ºC and relative humidity≤90%) | Criterion | ||
Lithium-ion/Lithium Polymer | LiFePO4 | |||
1 | Communication Interface | HDQ or I2C | ||
2 | Capacity | Designing battery capacity(PCM) | 5.2Ah | |
External capacity Indication | None | |||
Compensated End-of-Discharge Voltage | CEDV | |||
3 | Voltage | Charging voltage(CC/CV) | DC: 4.2V | DC: 3.6V |
4 | Current | Normal operating-mode current (Gas Gauge IC) | 150uA | |
SLEEP operating-mode current (Gas Gauge IC) | 80uA | |||
FULL SLEEP operating-mode current (Gas Gauge IC) | 25uA | |||
Maximal continuous charging current | 3a(Max) | |||
Maximal continuous discharging current | 3a(Max) | |||
5 | Over charge Protection | Over charge detection voltage | 4.250 ± 0.025V | 3.900 ± 0.025V |
Over charge detection delay time | 0.5~2S | |||
Over charge release voltage | 4.150 ± 0.050V | 3.800 ± 0.050V | ||
6 | Over discharge protection | Over discharge detection voltage | 2.75 ± 0.080V | 2.00 ± 0.080V |
Over discharge detection delay time | 10~30ms | |||
Over discharge release voltage | 2.75 ± 0.080V | 2.00 ± 0.080V | ||
7 | Over current protection | Over current detection voltage | 0.20 ± 0.025V | 0.10 ± 0.025V |
Over current detection current | 7±2a(adjustable) | |||
Detection delay time | 5~20ms | |||
Release condition | Cut load | |||
8 | Short protection | Detection condition | Exterior short circuit | |
Detection delay time | 100-600us | |||
Release condition | Cut load | |||
9 | Resistance | Protection circuitry(MOSFET) | ≤50mΩ | |
10 | Temperature | Operating Temperature Range | -40~+85ºC | |
Storage Temperature Range | -40~+125ºC | |||
Dimension | L60*W6*T3mm | |||
B+:Battery+ | ||||
B-:Battery- | ||||
D:I2C Data interface | ||||
C:I2C Clock interface | ||||
P+:Charge+/discharge+ | ||||
P-:Charge-/discharge- | ||||
T:10K NTC |
