| Quantity: | |
|---|---|
QW720-020-S
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Corrugated box,EPE pearl cotton/according to your requirements
200PCS
5000000 Pieces/1 Year
Quick Detail:
Brand Name:QUAWIN
Model Number:QW720-020-S
Use:72V lead acid batteries
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73.5V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:73.5V
Output current:2a
Output power:176.4W
Efficiency:≧85%
Shock & Vibration:SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery:
Inner package:Corrugated box,EPE pearl cotton/according to your requirements
Outer packing: export carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:

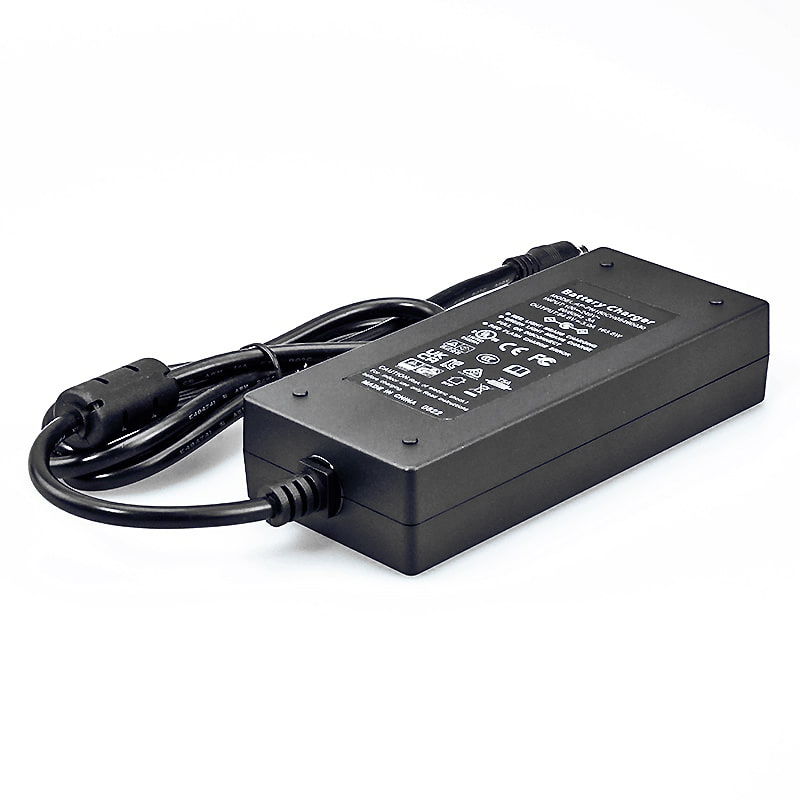

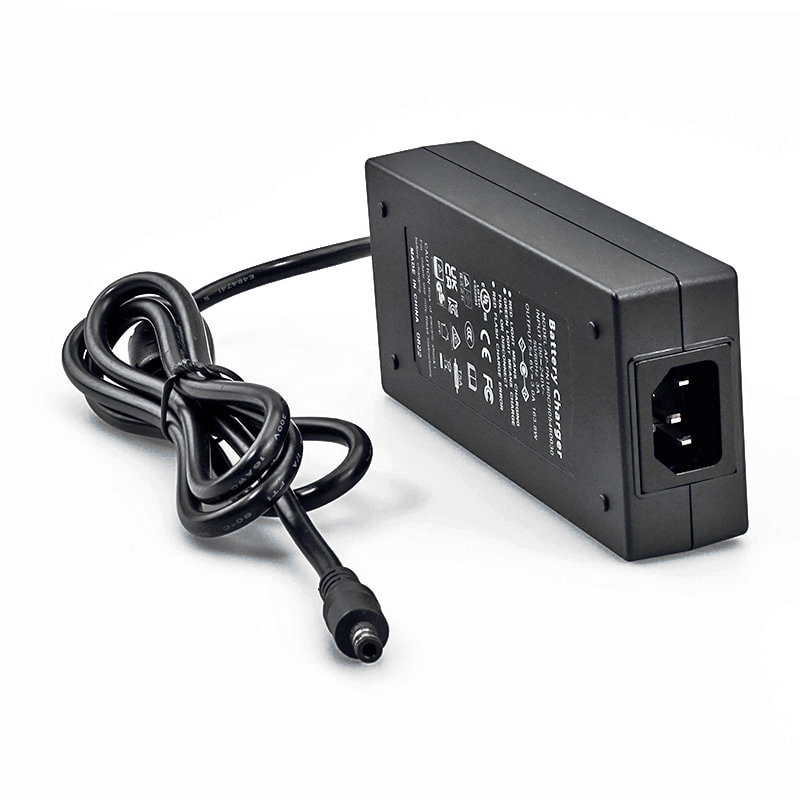

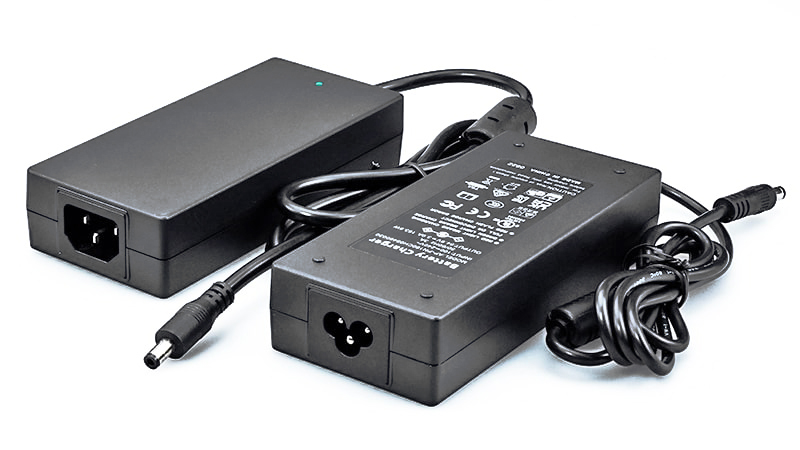

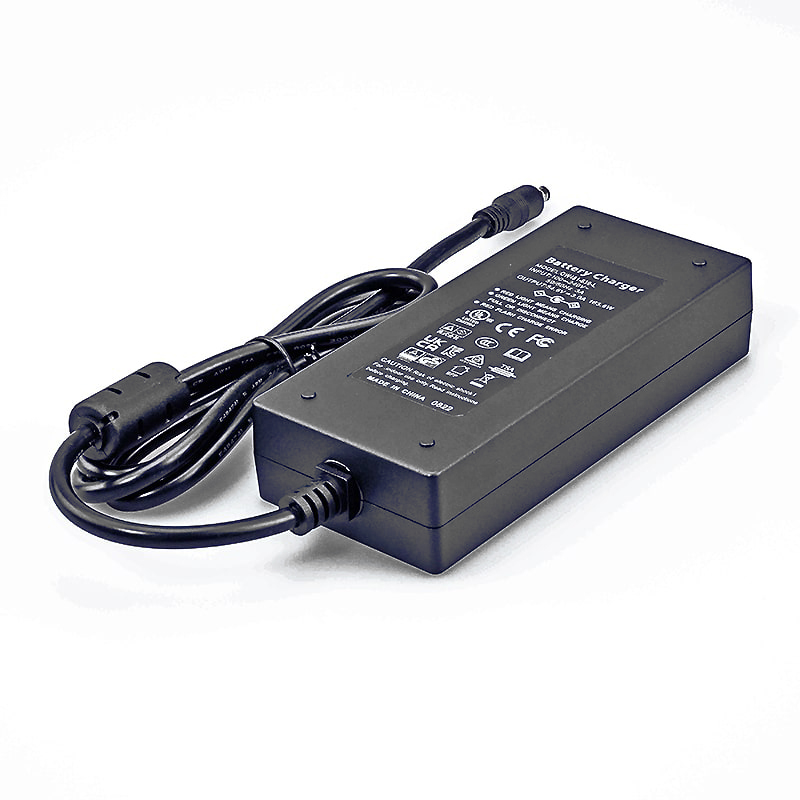

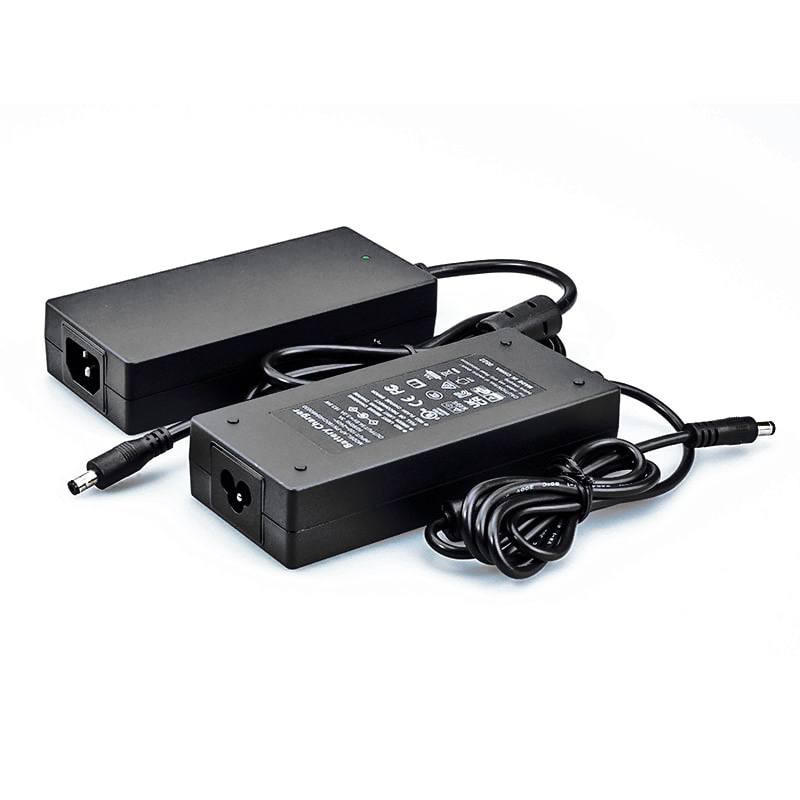

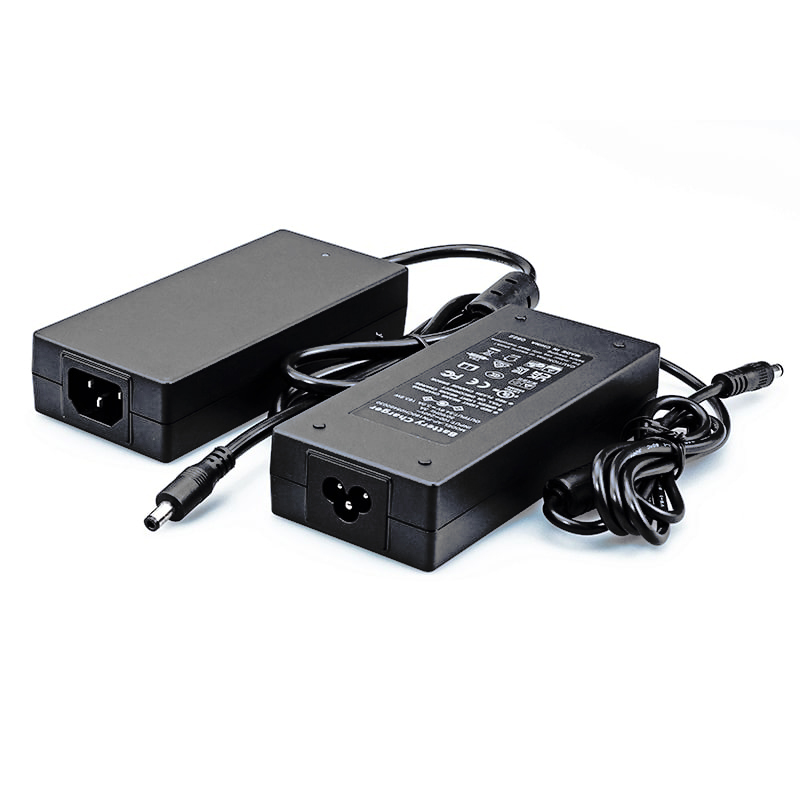

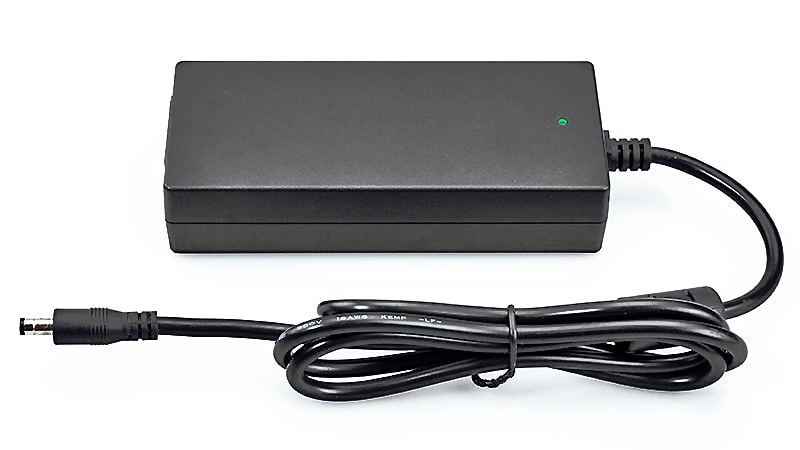

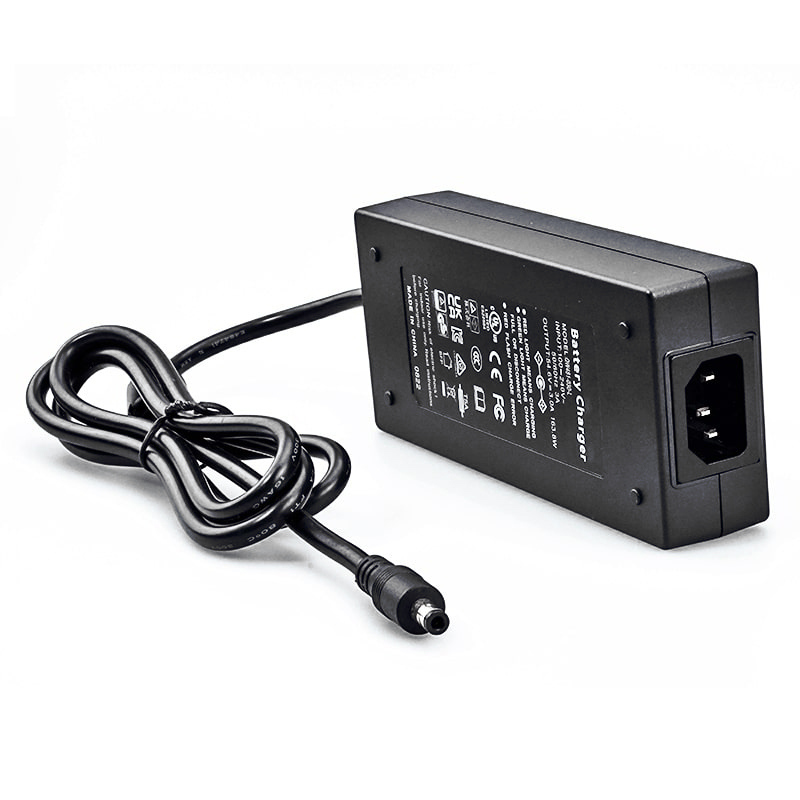

Portable fast SLA /AGM /VRLA /GEL charger 72V Lead-acid Battery charger
Features:
• Full auto 2 satges( CC+CV ) charging process,
• Constant big charging current for faster charging;
• Plastic case with fan-less design
• Fully enclosed fanless design, quiet and durable.
• It can charge any 72V VRLA/GEL/AGM battery with capacity 8-16ah
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 73.5V
• Charging current: 2a(Max)

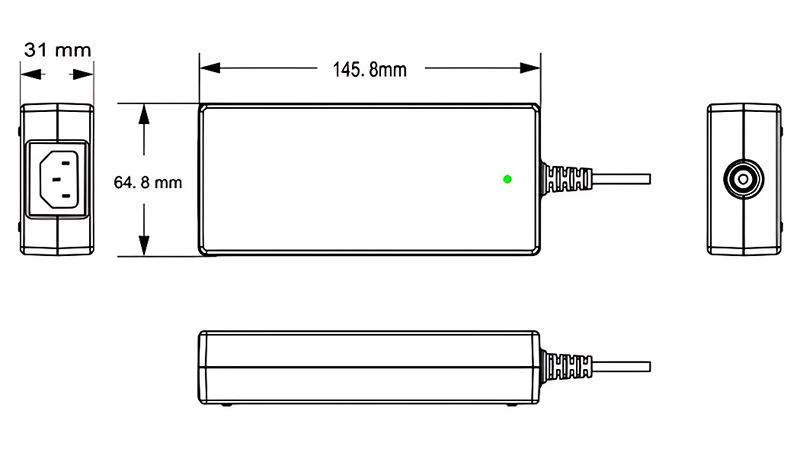

• Dimensions (mm): 145.8*64.8*31
• Weight: 600±50g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Anti-revert current protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
• Error: RED Light Flashing
Call us to know more details datasheet.
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-100-F | LiFePO4 | AC 100~264V | 12.8(4S) | 14.6 | 10 |
| QW256-060-F | 25.6(8S) | 29.2 | 6 | ||
| QW384-040-F | 38.4(12S) | 43.8 | 4 | ||
| QW512-030-F | 51.2(16S) | 58.4 | 3 | ||
| QW640-025-F | 64(20S) | 73 | 2.5 | ||
| QW768-020-F | 76.8(24S) | 87.6 | 2 | ||
| QW148-100-L | Lithium | 14.8(4S) | 16.8 | 10 | |
| QW259-060-L | 25.9(7S) | 29.4 | 6 | ||
| QW370-040-L | 37(10S) | 42 | 4 | ||
| QW481-030-L | 48.1(13S) | 54.6 | 3 | ||
| QW629-025-L | 62.9(17S) | 71.4 | 2.5 | ||
| QW740-020-L | 74(20S) | 84 | 2 | ||
| QW120-100-S | Lead Acid | 12(1S) | 14.7 | 10 | |
| QW240-060-S | 24(2S) | 29.4 | 6 | ||
| QW360-040-S | 36(3S) | 44.1 | 4 | ||
| QW480-030-S | 48(4S) | 58.8 | 3 | ||
| QW600-025-S | 60(5S) | 73.5 | 2.5 | ||
| QW720-020-S | 72(6S) | 88.2 | 2 | ||
Quick Detail:
Brand Name:QUAWIN
Model Number:QW720-020-S
Use:72V lead acid batteries
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73.5V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:73.5V
Output current:2a
Output power:176.4W
Efficiency:≧85%
Shock & Vibration:SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery:
Inner package:Corrugated box,EPE pearl cotton/according to your requirements
Outer packing: export carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:
Portable fast SLA /AGM /VRLA /GEL charger 72V Lead-acid Battery charger
Features:
• Full auto 2 satges( CC+CV ) charging process,
• Constant big charging current for faster charging;
• Plastic case with fan-less design
• Fully enclosed fanless design, quiet and durable.
• It can charge any 72V VRLA/GEL/AGM battery with capacity 8-16ah
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 73.5V
• Charging current: 2a(Max)
• Dimensions (mm): 145.8*64.8*31
• Weight: 600±50g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Anti-revert current protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
• Error: RED Light Flashing
Call us to know more details datasheet.
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-100-F | LiFePO4 | AC 100~264V | 12.8(4S) | 14.6 | 10 |
| QW256-060-F | 25.6(8S) | 29.2 | 6 | ||
| QW384-040-F | 38.4(12S) | 43.8 | 4 | ||
| QW512-030-F | 51.2(16S) | 58.4 | 3 | ||
| QW640-025-F | 64(20S) | 73 | 2.5 | ||
| QW768-020-F | 76.8(24S) | 87.6 | 2 | ||
| QW148-100-L | Lithium | 14.8(4S) | 16.8 | 10 | |
| QW259-060-L | 25.9(7S) | 29.4 | 6 | ||
| QW370-040-L | 37(10S) | 42 | 4 | ||
| QW481-030-L | 48.1(13S) | 54.6 | 3 | ||
| QW629-025-L | 62.9(17S) | 71.4 | 2.5 | ||
| QW740-020-L | 74(20S) | 84 | 2 | ||
| QW120-100-S | Lead Acid | 12(1S) | 14.7 | 10 | |
| QW240-060-S | 24(2S) | 29.4 | 6 | ||
| QW360-040-S | 36(3S) | 44.1 | 4 | ||
| QW480-030-S | 48(4S) | 58.8 | 3 | ||
| QW600-025-S | 60(5S) | 73.5 | 2.5 | ||
| QW720-020-S | 72(6S) | 88.2 | 2 | ||
