16s C: 20a D:100a High Current BMS for 57.6V 59.2V 60V Li-ion/Lithium/Li-Polymer 48V 51.2V LiFePO4 Battery Pack with Hdq, I2c and Bluetooth

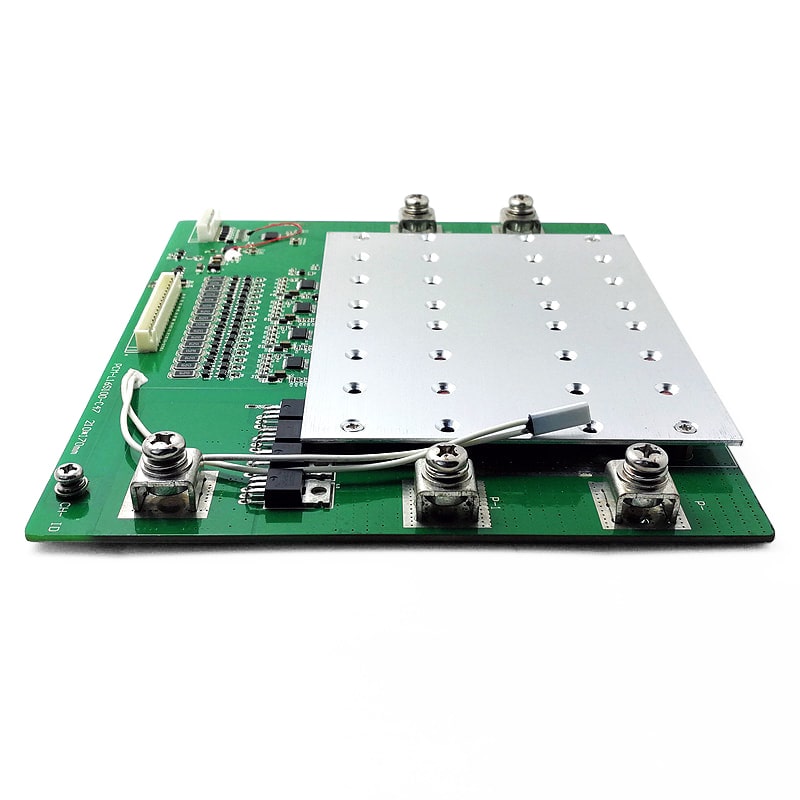

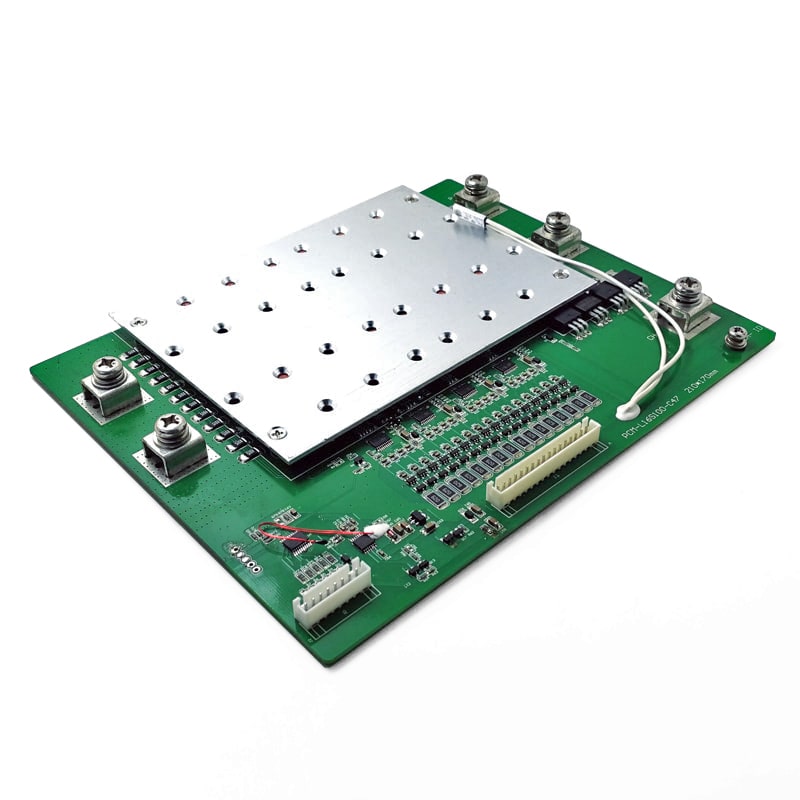

Model No:PCM-16S100-C47
Charging Current:20a
Discharging Current:100a
Size:L210*W170*T15mm
Balance:YES
Availability:
Quantity:
  • PCM-16S100-C47

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 50PCS

  • 500000/Month

Technical parameter


Product name:Protection Circuit Module
Model No:PCM-16S100-C47
For 16S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 16 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Separate charging/discharge interfaces, charge 20a and discharge 100a;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. The metering IC adopts BQ34Z100,which can read the total voltage, capacity, current, temperature, cycle times and other parameters;
5. The required information can be read through the display screen of modelPCM-LCD001-415;

Protection Circuit Module Specifications  For 59.2V Li-ion/Li-Po  Battery  Pack
No Test   item
(Test at normal temperature 25±2ºC and relative humidity≤90%)
Criterion
1 Communication Interface HDQ or I2C
2 Capacity Designing battery capacity(PCM)       10-150Ah
Max capacity(Battery pack)   320Ah
Min capacity(Battery pack)   100mAh
External capacity Indication LED,LCD
Gas gauge algorithm   Impedance Track
3 Voltage Charging voltage DC: 67.2V CC/CV(4.2V/1cell)
Cell-balance detection voltage
(Charge balance)
4.2V±0.03V
Cell-balance release voltage   4.2V±0.025V
Cell-balance detection delay time 0.96~1.4s
4 Current Balance current for single cell 68±5mA
Normal operating-mode current
(Gas Gauge IC)
600uA
SLEEP operating-mode current
(Gas Gauge IC)
250uA
FULL SLEEP operating-mode current
(Gas Gauge IC)
100uA
Maximal continuous charging current   20a(Max)
Maximal continuous discharging current   100a(Max)
5 Over charge Protection Over charge detection voltage 4.25±0.025V
Over charge release voltage 4.05±0.05V
Over charge detection delay time 0.5~2S(can adjust)
6 Over discharge protection Over discharge detection voltage 2.5±0.07V
Over discharge release voltage 3.0±0.1V
Over discharge detection delay time 0.5~2S(can adjust)
7 Over current protection Over current detection voltage 0.2±0.015V
Over current detection current 250±50a(can adjust)
Detection delay time   0.5~2S(can adjust)
Release condition Cut load
8 Short protection Detection condition Exterior short circuit
Detection delay time 200-800us
Release condition Cut load ,
9 Resistance Protection  circuitry (MOSFET) ≤20mΩ
10 Temperature Operating Temperature Range   -40~+85ºC
Storage Temperature Range -40~+125ºC
Dimension L210*W170*T15mm
B+:Battery+
PCM-16S100-C47-2
B-:Battery-
SDA:I2C data line
SCL:I2C clock line
RT1:NTC
P+:Discharge+
P-:Discharge-
