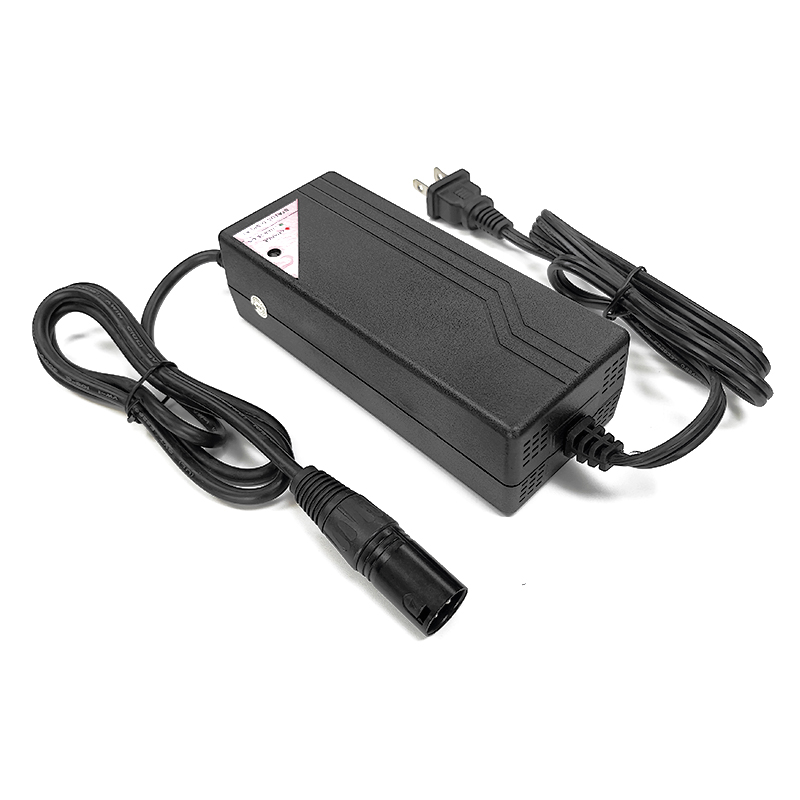

150W Charger 12V 10a Battery Charger for AGM VRLA GEL Lead Acid Batteries Electric Tricycles Electric Wheelchair Electric Scooter Battery Packs

Model:QW120-100-S
Input voltage:100-240VAC 50/60Hz
Output voltage:14.7V
Output current:10a(Max)
Dimensions (mm): 152.5*63*45
Availability:
Quantity:
  • QW120-100-S

  • QUAWINTEC/OEM

  • 8504401990

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 200PCS

  • 5000000 Pieces/1 Year

Quick Detail:
Brand Name:QUAWIN
Model Number:QW120-100-S
Use:12V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 14.7V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz

Output voltage:14.7V
Output current:10a
Output power:147W
Efficiency:>=85%
Shock & Vibration:SAEJ1378 Standard

Charge mode:CC---CV---Float Charge
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization


Packaging & Delivery:

30pcs/Carton
Carton size: 415*380*270mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
Portable fast SLA /AGM /VRLA /GEL charger 12V Lead-acid Battery charger

Features:
 • Full auto 3 satges( CC+CV(H)+CV(F) ) charging process,
 • Constant big charging current for faster charging;
 • Automatically charging ending with Cut-Off output;
 • Plastic housing with Fan Cooling
 • It can charge any 12V SLA/VRLA/GEL/AGM battery with capacity 40-80ah


Specification:
 • Input: 100-240VAC 50/60Hz
 • Output: DC 14.7V
 • Charging current: 10a(Max)
 • Dimensions (mm): 152.5*63*45mm
 • Weight: 500±5g(only body)


Safety protections:

• Over Voltage protection

• Short Circuit protection

• Polarity error protection

• Over power protection
• Overheating protection


LED Indicator:
  The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
 • Charging:Red LED
 • Battery Full:Green LED


Call us to know more details datasheet.

Typical Product Model
Model Input Voltage(V) Battery Voltage(V) Charging Voltage(V) Charging Current(A)
QW128-100-F LiFePO4 AC 100~264V 12.8(4S) 14.6 10
QW256-050-F 25.6(8S) 29.2 5
QW384-030-F 38.4(12S) 43.8 3
QW512-025-F 51.2(16S) 58.4 2.5
QW640-020-F 64(20S) 73 2
QW148-090-L Lithium 14.8(4S) 16.8 9
QW259-050-L 25.9(7S) 29.4 5
QW370-030-L 37(10S) 42 3
QW481-025-L 48.1(13S) 54.6 2.5
QW629-020-L 62.9(17S) 71.4 2
QW120-100-S Lead Acid 12(1S) 14.7 10
QW240-050-S 24(2S) 29.4 5
QW360-030-S 36(3S) 44.1 3
QW480-025-S 48(4S) 58.8 2.5
QW600-020-S 60(5S) 73.5 2

150W details-1150W details-2150W details-3AC INPUT PLUG193_DC PlugFull Automatic Intelligen 14.7V 10A 150W Charger for 12V SLA /AGM /VRLA /Gel Lead-Acid Battery150W DrawingsAgeingFull Automatic Intelligen 14.7V 10A 150W Charger for 12V SLA /AGM /VRLA /Gel Lead-Acid BatteryFull Automatic Intelligen 14.7V 10A 150W Charger for 12V SLA /AGM /VRLA /Gel Lead-Acid BatteryFull Automatic Intelligen 14.7V 10A 150W Charger for 12V SLA /AGM /VRLA /Gel Lead-Acid BatteryFull Automatic Intelligen 14.7V 10A 150W Charger for 12V SLA /AGM /VRLA /Gel Lead-Acid BatteryFull Automatic Intelligen 14.7V 10A 150W Charger for 12V SLA /AGM /VRLA /Gel Lead-Acid Battery
