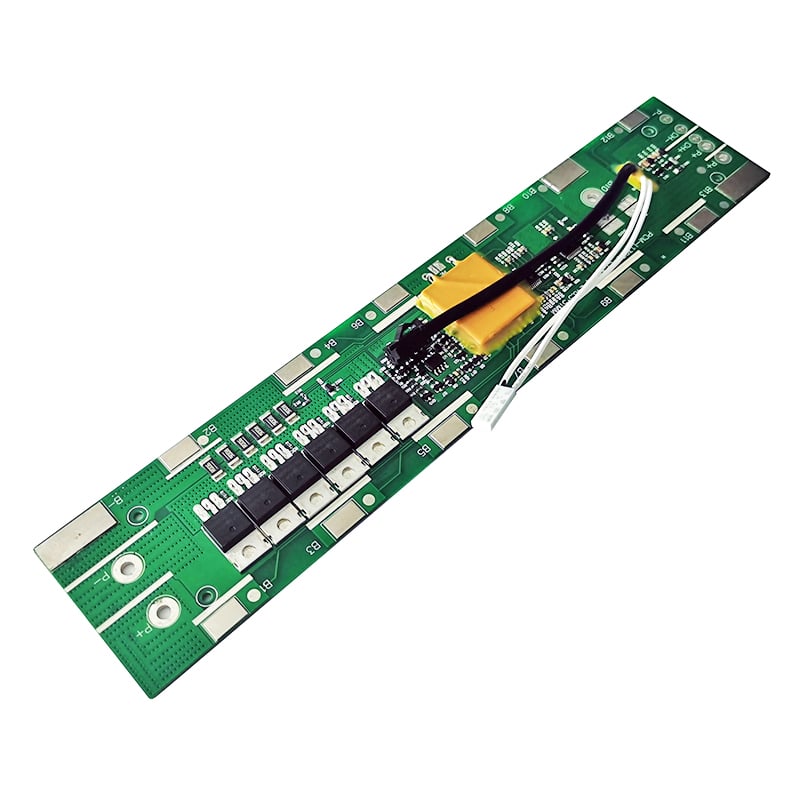

Product name:Protection Circuit Module
Model No:PCM-L13S30-E73(A-2)
For 13S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 13 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Charging/discharge interfaces are separated, charging current 5A, discharge current 30A;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. The temperature switch detects the battery temperature and controls the discharge MOSFET;
4. Weak current switch controls discharge output;
Items | Specifications | ||
Lithium-ion/Lithium Polymer | LiFePO4 | ||
Charge | Charging voltage(CC/CV)-13S | CC/CV:54.6V | CC/CV:46.8V |
Maximal continuous charging current | 5a(Max) | ||
Discharge | Maximal continuous discharging current | 30a(Max) | |
Low current consumption | Current consumption on operation | <20μA | |
Current consumption at power down | / | ||
Cell-balance | Cell-balance detection voltage | / | / |
Cell-balance release voltage | / | / | |
Cell-balance current | / | / | |
Over-charge | Overcharge detection voltage | 4.25±0.025V | 3.900 ± 0.025V |
Overcharge release voltage | 4.15±0.05V | 3.800 ± 0.050V | |
Overcharge delay time | 0.5~2S | ||
Over-discharge | Overdischarge detection voltage | 2.50±0.062V | 2.00±0.080V |
Overdischarge release voltage | 3.0±0.075V | 2.30±0.100V | |
Overdischarge delay time | 100~250mS | ||
Discharge overcurrent | Discharge overcurrent detection voltage | 0.2±0.015V | 0.10±0.015V |
Discharge overcurrent delay time | 15~35ms | ||
Discharge overcurrent protection | 80±10a(can adjust) | ||
Release condition | Cut-off-load | ||
Short-circuiting protection | Load short-circuiting detection voltage | / | / |
Detection condition | Exterior short circuit | ||
Load short-circuiting detection delay time | 200~800μs | ||
Release condition | Cut-off-load | ||
Internal resistance | Static Drain-Source On-Resistance | <40mΩ(B- to P-) | |
Temperature | Wide range of operation temperature | 40 ~ + 85ºC | |
Storage Temperature Range | -40 ~ +125ºC | ||
Dimension | L248*W51*T10mm |
