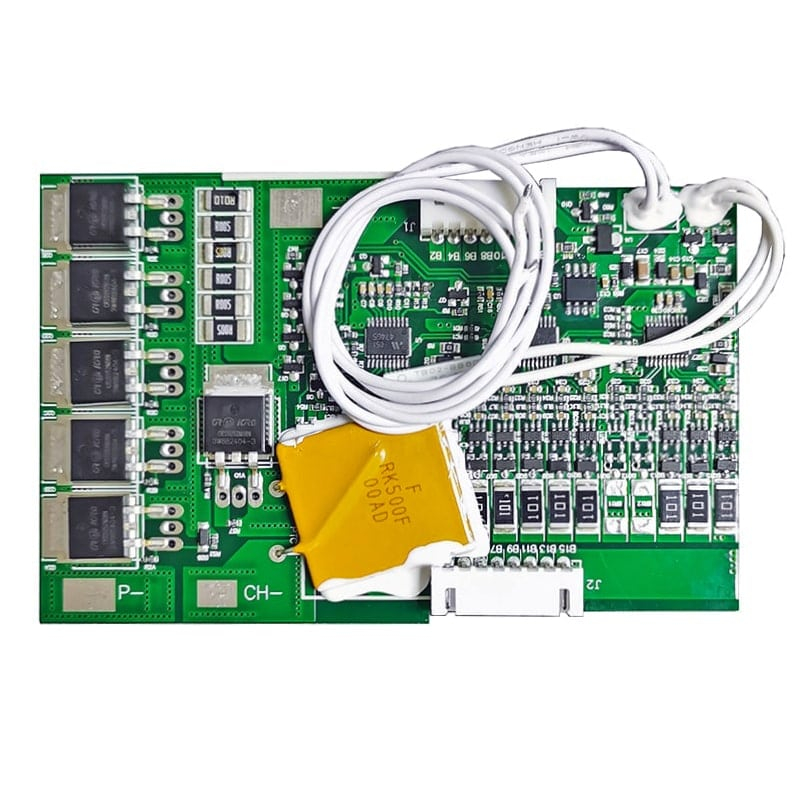

13s C: 5A D: 30A PCM BMS for 48V 48.1V Li-ion/Lithium/Li-Polymer 41.6V 42V LiFePO4 Battery Pack Size L108*W70*T10mm PCM-L13S30-E84

Model No:PCM-L13S30-E84
Charging Current:5A
Discharging Current:30A
Size:L108*W70*T10mm
Balance:YES
Availability:
Quantity:
  • PCM-L13S30-E84

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 100PCS

  • 500000/Month

Technical parameter


Product name:Protection Circuit Module
Model No:PCM-L13S30-E84(A-3)
For 13S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 13 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Charging/discharge interfaces are separated, charging current 5A, discharge current 30A;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. The temperature switch detects the battery temperature and controls the discharge MOSFET;
4. Weak current switch controls discharge output;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-13S CC/CV:54.6V CC/CV:46.8V
Maximal continuous charging current 5a(Max)
Discharge Maximal continuous discharging current 30a(Max)
Low current consumption Current consumption on operation <20μA
Current consumption at power down /
Cell-balance Cell-balance detection voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance release voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance current 68 ±3mA 58 ±3mA
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~250mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 80±10a(can adjust)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <40mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension L108*W70*T10mm

PCM-L13S30-E84-8PCM-L13S30-E84-7PCM-L13S30-E84BBMS-1BMS-2BMS-3SMT-1SMT-2SMT-3SMT-413s C: 5A D: 30A PCM BMS for 48V 48.1V Li-ion/Lithium/ Li-Polymer 41.6V 42V LiFePO4 Battery Pack Size L108*W70*T10mm PCM-L13s30-E84 (A-2)13s C: 5A D: 30A PCM BMS for 48V 48.1V Li-ion/Lithium/ Li-Polymer 41.6V 42V LiFePO4 Battery Pack Size L108*W70*T10mm PCM-L13s30-E84 (A-2)13s C: 5A D: 30A PCM BMS for 48V 48.1V Li-ion/Lithium/ Li-Polymer 41.6V 42V LiFePO4 Battery Pack Size L108*W70*T10mm PCM-L13s30-E84 (A-2)
