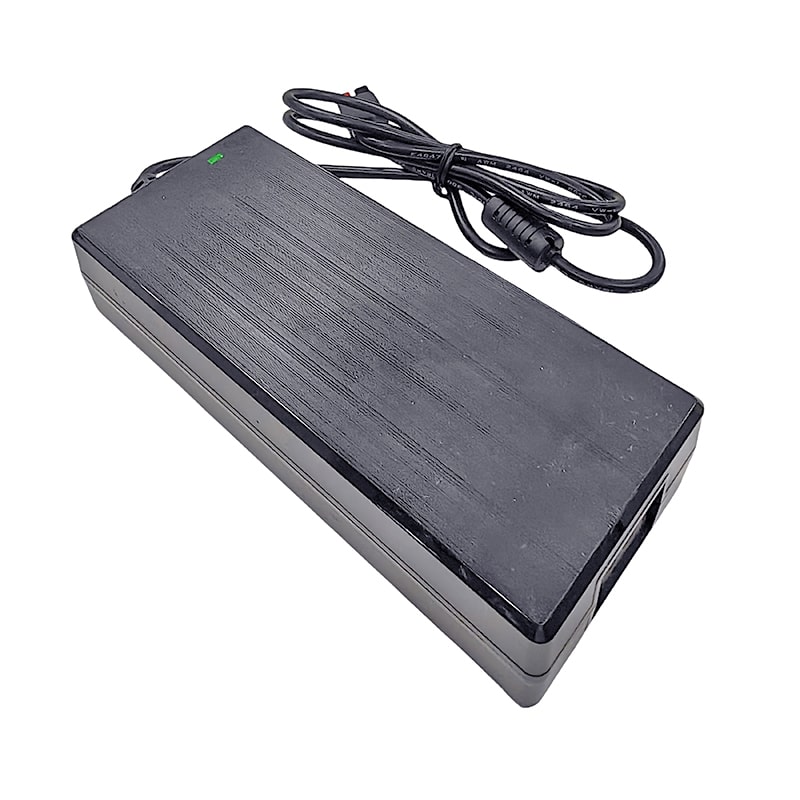

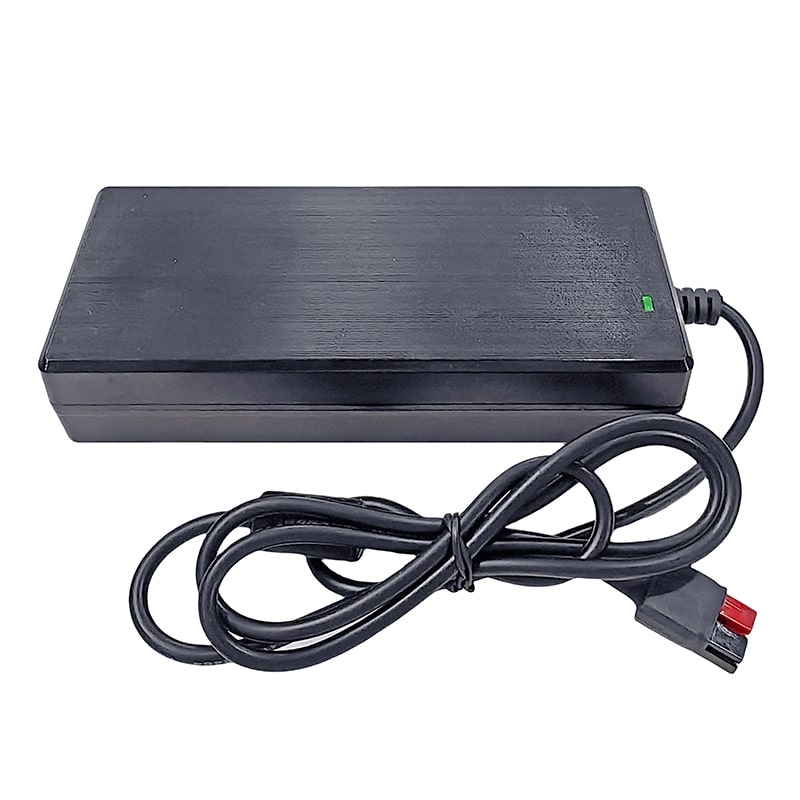

120W Battery Charger 72V 1a 1.4a Charger for Electric Tricycles Wheelchair Solar Energy System AGM VRLA GEL Lead Acid Batteries Packs

Quick Detail:

Brand Name:QUAWIN

Model Number:QW720-014-S

Use:72V lead acid batteries

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 88.2V

Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz

Output voltage:88.2V

Output current:1.4a

Output power:123.48W
Efficiency:≧85%
Shock & Vibration:SAEJ1378 Standard

Charge mode:CC---CV---Float Charge

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
Portable fast SLA /AGM /VRLA /GEL charger 72V Lead-acid Battery charger

Features:

• Full auto 3 satges( CC+CV(H)+CV(F) ) charging process,

• Constant big charging current for faster charging;

• Plastic case with fan-less design

• Fully enclosed fanless design, quiet and durable.

• It can charge any 72V VRLA/GEL/AGM battery with capacity 5-10ah

Specification:

• Input: 100-240VAC 50/60Hz

• Output: DC 88.2V

• Charging current: 1.4a(Max)

• Dimensions (mm):172.7*72.7*36

• Weight: 600±10g(only body)

Safety protections:

• Over current protection

• Over voltage protection

• Short circuit protection

• Reverse polarity protection

• Anti-revert current protection

• Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

• Charging:Red LED

• Battery Full:Green LED

• Error: RED Light Flashing

Call us to know more details datasheet.
