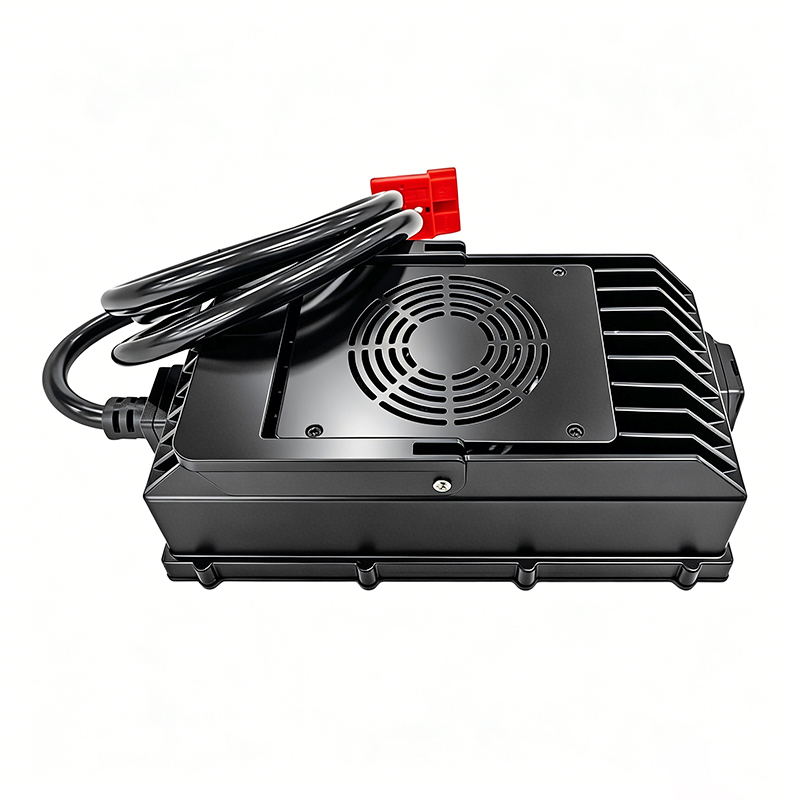

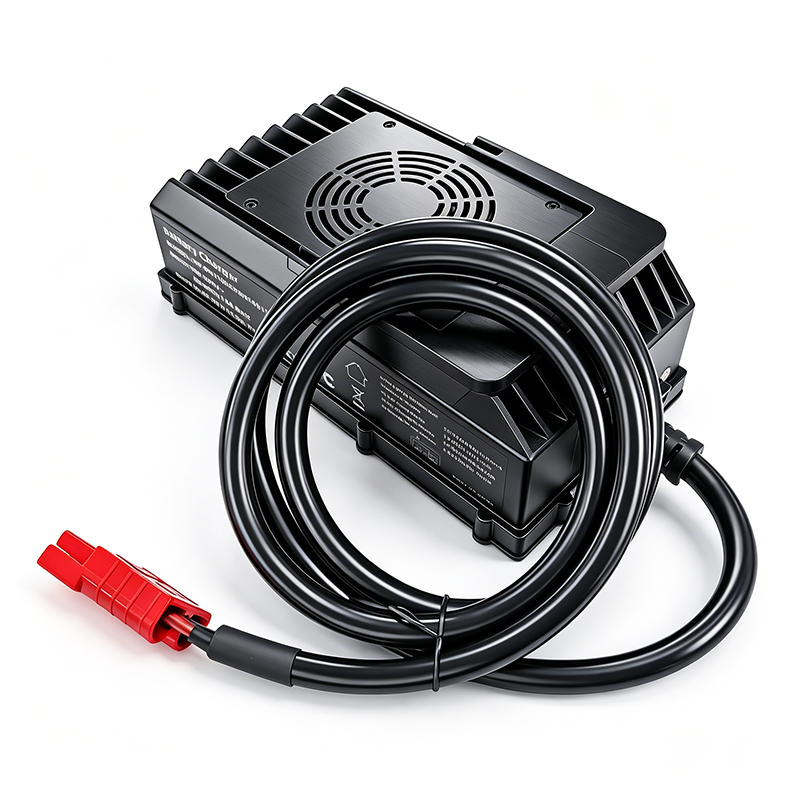

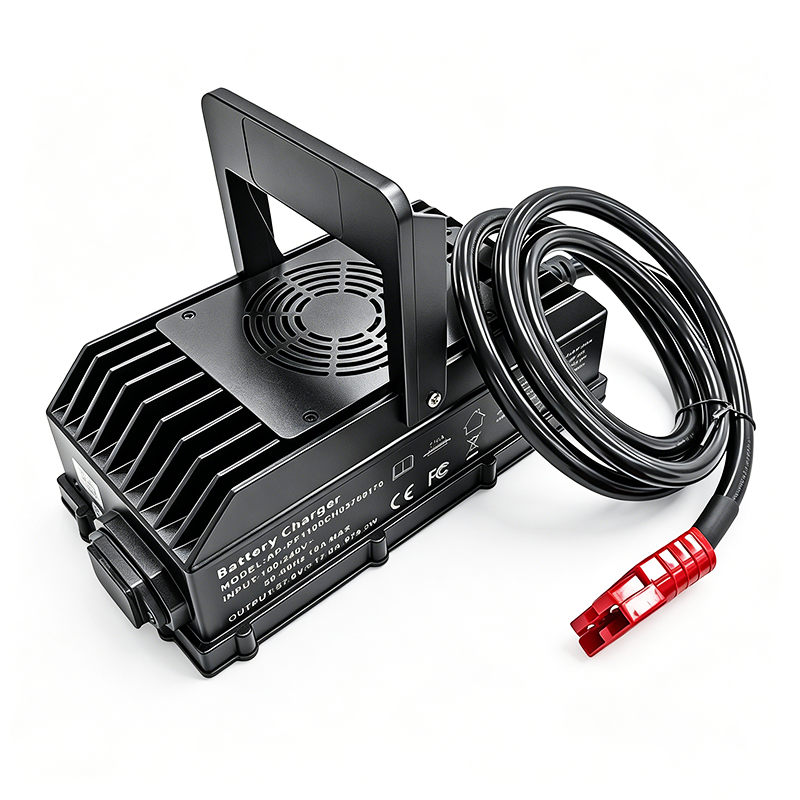

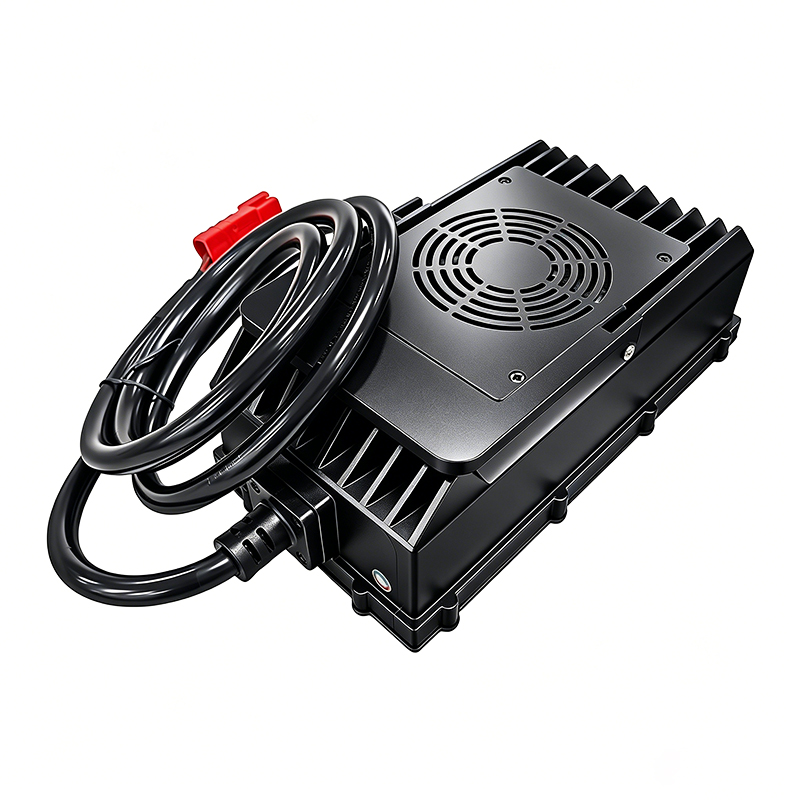

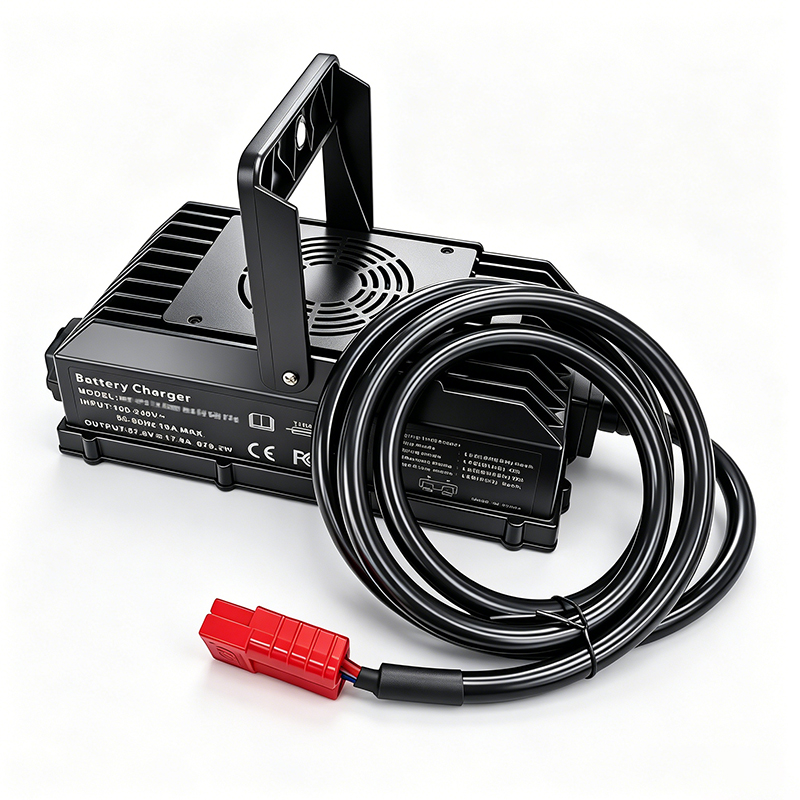

1200W IP67 Waterproof Charger 60V 16A Lead Acid Battery Charger 73V For Marine Boat Trolling Motor Battery Pack

Quick Detail:
Brand Name:QUAWIN
Model Number:QW600-160-SA
Use:60V lead acid batteries
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73V
Color:Black
Shell Material:Aluminium alloy
Protection grade:IP67(Max)
Input voltage:100-240VAC 50/60Hz
Output voltage:73V
Output current:16a
Output power:1,168W
Efficiency:≧90%
Communication protocol: Supports CAN or RS485
Charge mode:CC---CV---Float Charge
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  Portable fast SLA /AGM /VRLA /GEL charger 60V Lead-acid Battery charger

Features:
  • Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
  • Constant big charging current for faster charging;
  • Automatically charging ending with Cut-Off output;
  • Glue injection process and external fan metal shell cooling design;
  • It can charge any 60V VRLA/GEL/AGM battery with capacity 65-130Ah

Specification:
  • Input: 100-240VAC 50/60Hz with PFC
  • Output: DC 73V
  • Charging current: 16a(Max)

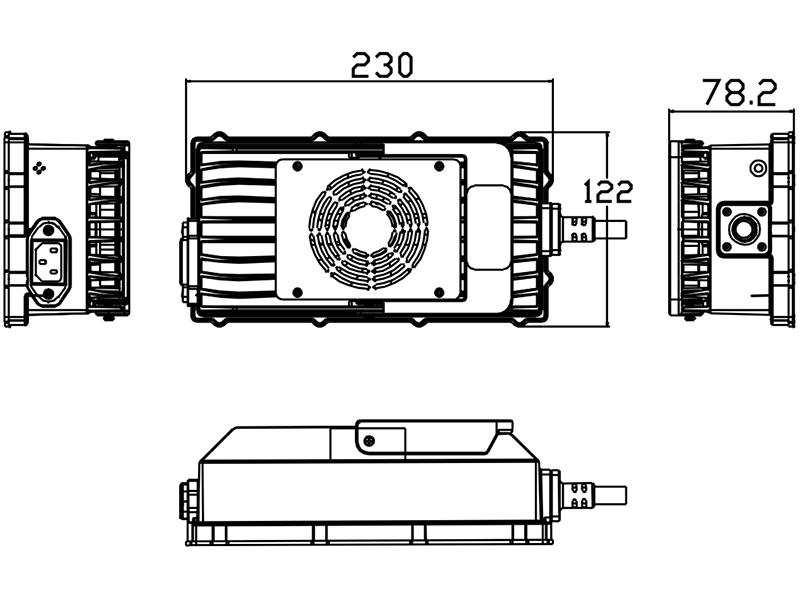

  • Dimensions (mm): 230*122*78.2
  • Weight: 3300±50g(only body)

Safety protections:

  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • Reverse polarity protection
  • Anti-revert current protection
  • Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH

Typical Product Model
Model		Input Voltage(V)	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-400-FA	LiFePO4	AC 100~264V	12.8(4S)	14.6	40
QW256-400-FA			25.6(8S)	29.2	40
QW384-270-FA			38.4(12S)	43.8	27
QW512-200-FA			51.2(16S)	58.4	20
QW640-160-FA			64(20S)	73	16
QW768-130-FA			76.8(24S)	87.6	13
QW148-400-LA	Lithium ion		14.8(4S)	16.8	40
QW259-400-LA			25.9(7S)	29.4	40
QW370-270-LA			37(10S)	42	27
QW481-200-LA			48.1(13S)	54.6	20
QW629-160-LA			62.9(17S)	71.4	16
QW740-130-LA			74(20S)	84	13
QW120-400-SA	Lead Acid		12(1S)	14.7	40
QW240-400-SA			24(2S)	29.4	40
QW360-270-SA			36(3S)	44.1	27
QW480-200-SA			48(4S)	58.8	20
QW600-160-SA			60(5S)	73.5	16
QW720-130-SA			72(6S)	88.2	13
