QW720-130-SM
QUAWINTEC/OEM
8504401990
Shenzhen, China
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Corrugated box,EPE pearl cotton/according to your requirements
100 PCS
5000 Pieces/month
Quick Detail:
Brand Name:QUAWIN
Model Number:QW720-130-SM
Use:72V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 88.2V
Color:Black/Army green
Shell Material:Aluminium alloy
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:88.2V
Output current:13a
Output power:1,146.6W
Efficiency:≧92%
Electromagnetic compatibility: meets the requirements of GJB
Operating temperature:-40℃ ~ 65℃
Reliability: MTBF≧3000H
Special Process:Spray Three Proof Paint
Charge mode:CC---CV---Float Charge
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery:
Specifications:

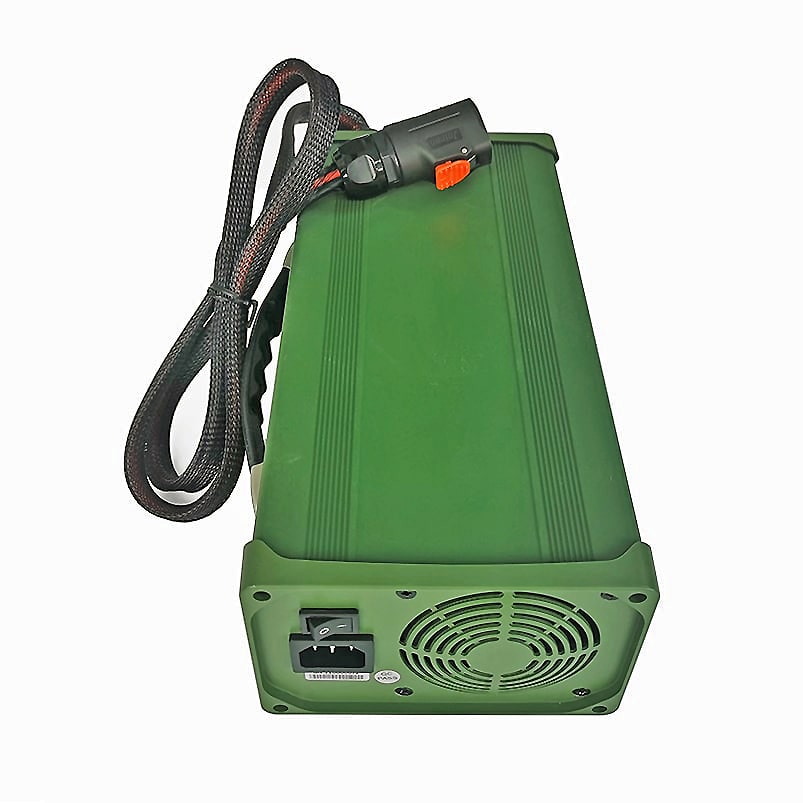

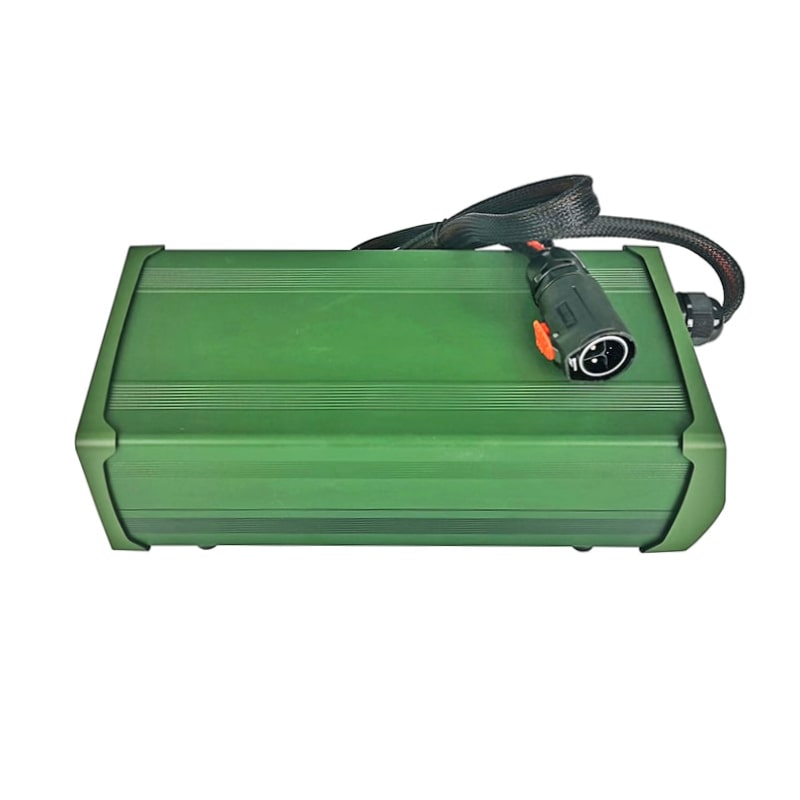

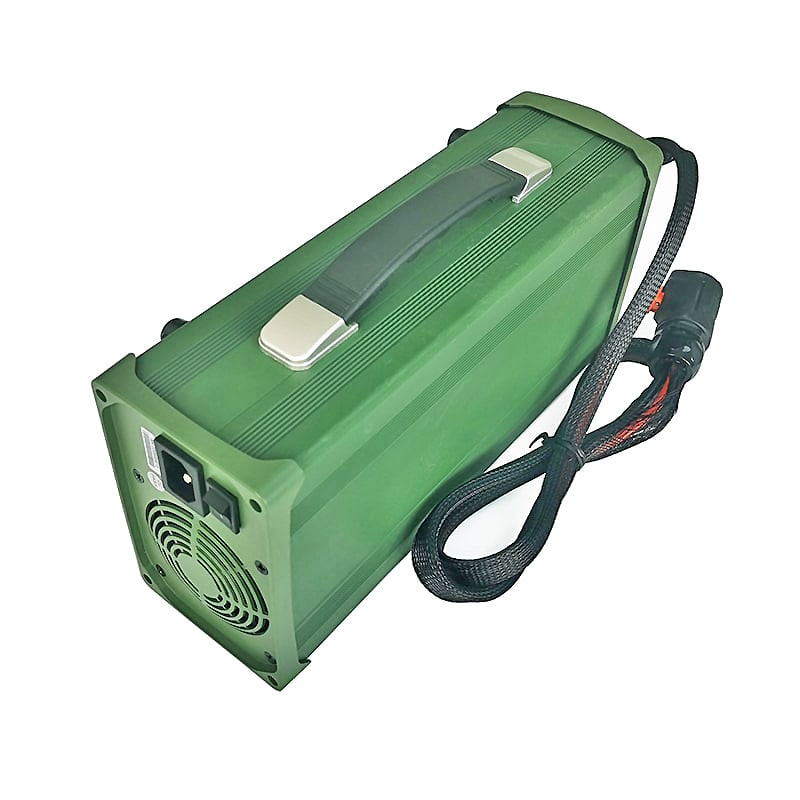

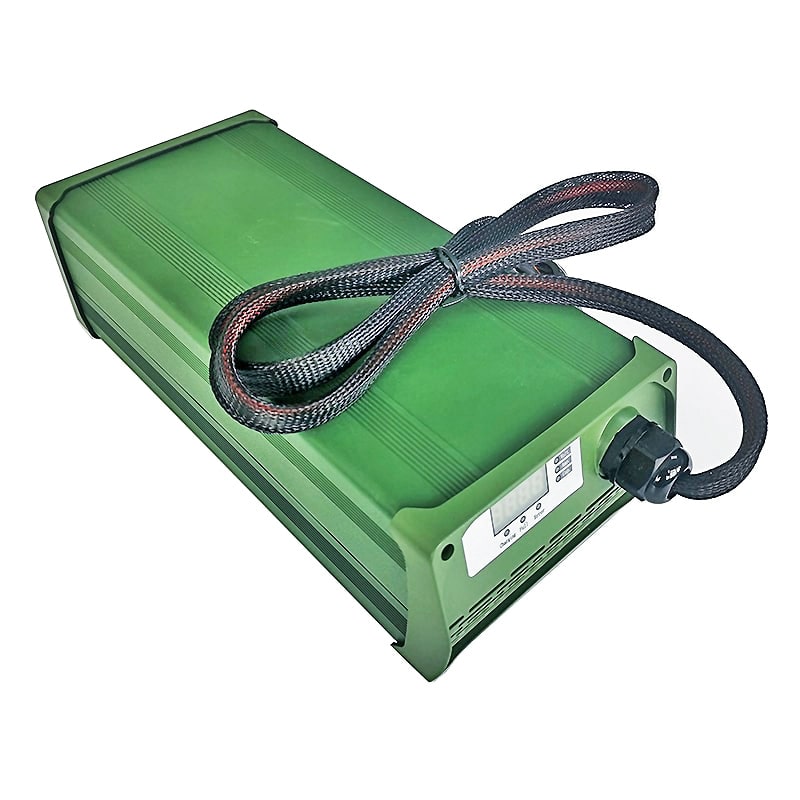

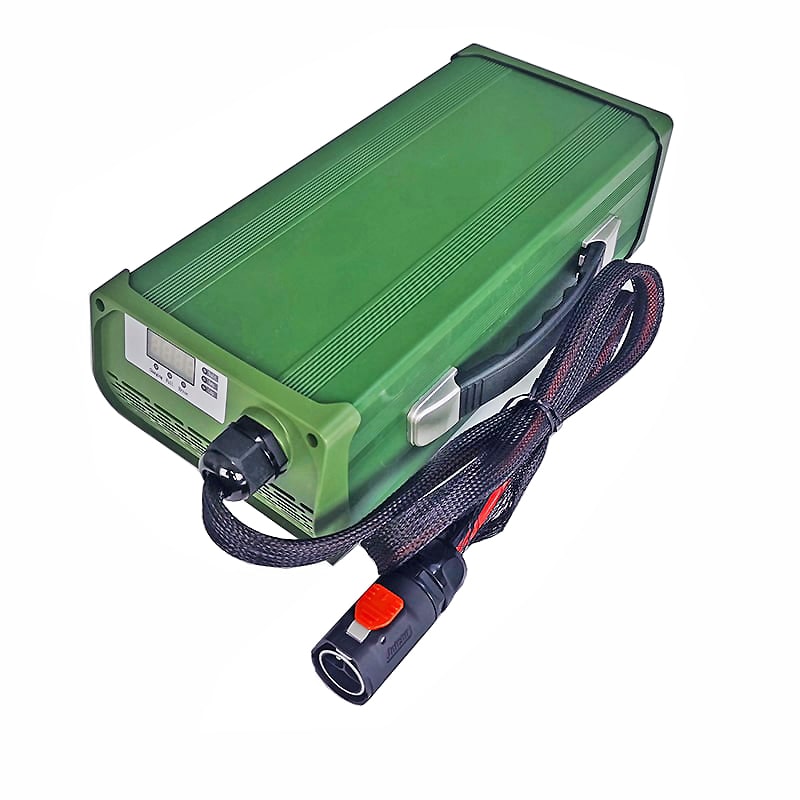

Portable fast SLA /AGM /VRLA /GEL charger 72V Lead-acid Battery charger
Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• Automatically charging ending with Cut-Off output;
• Metal case with Fan Cooling
• It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.
• It can charge any 72V SLA/VRLA/GEL/AGM battery with capacity 52-104Ah
Specification:
• Input:100-240VAC 50/60Hz with PFC
• Output: DC 88.2V
• Charging current: 13a(Max)
• Dimensions (mm): 312*140*90
• Weight: 3750±50g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Reverse polarity protection
• Anti-revert current protection
• Anti-spark protection

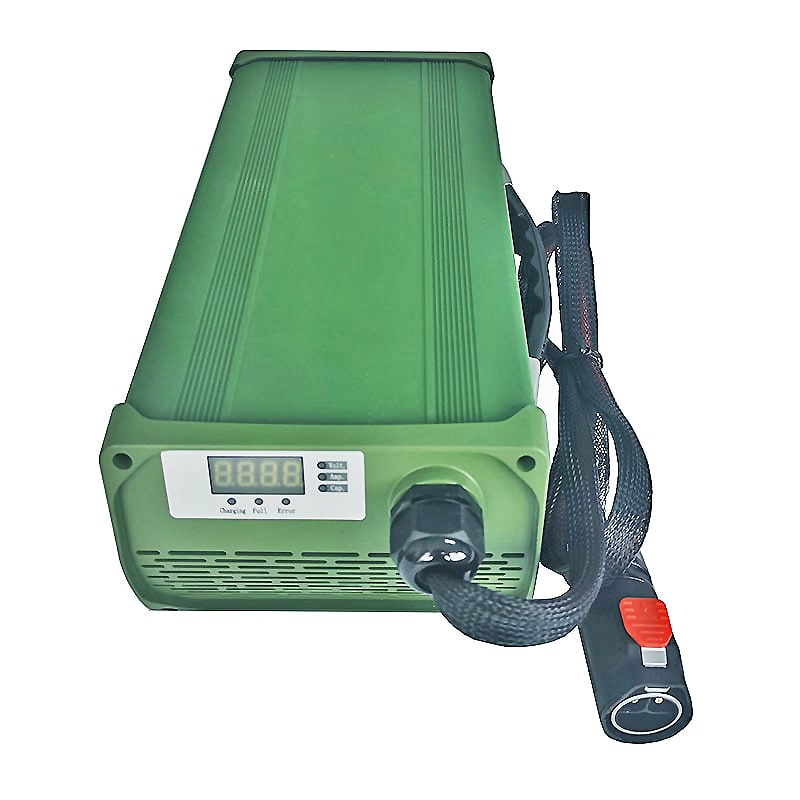

LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-600-FM | LiFePO4 | AC 100~264V | 12.8(4S) | 14.6 | 60 |
| QW256-400-FM | 25.6(8S) | 29.2 | 40 | ||
| QW384-250-FM | 38.4(12S) | 43.8 | 25 | ||
| QW512-200-FM | 51.2(16S) | 58.4 | 20 | ||
| QW640-150-FM | 64(20S) | 73 | 15 | ||
| QW768-130-FM | 76.8(24S) | 87.6 | 13 | ||
| QW111-600-LM | Lithium | 11.1(3S) | 12.6 | 60 | |
| QW148-600-LM | 14.8(4S) | 16.8 | 60 | ||
| QW259-400-LM | 25.9(7S) | 29.4 | 40 | ||
| QW370-250-LM | 37(10S) | 42 | 25 | ||
| QW481-200-LM | 48.1(13S) | 54.6 | 20 | ||
| QW629-150-LM | 62.9(17S) | 71.4 | 15 | ||
| QW740-130-LM | 74(20S) | 84 | 13 | ||
| QW120-600-SM | Lead Acid | 12(1S) | 14.7 | 60 | |
| QW240-400-SM | 24(2S) | 29.4 | 40 | ||
| QW360-250-SM | 36(3S) | 44.1 | 25 | ||
| QW480-200-SM | 48(4S) | 58.8 | 20 | ||
| QW600-150-SM | 60(5S) | 73.5 | 15 | ||
| QW720-130-SM | 72(6S) | 88.2 | 13 | ||
