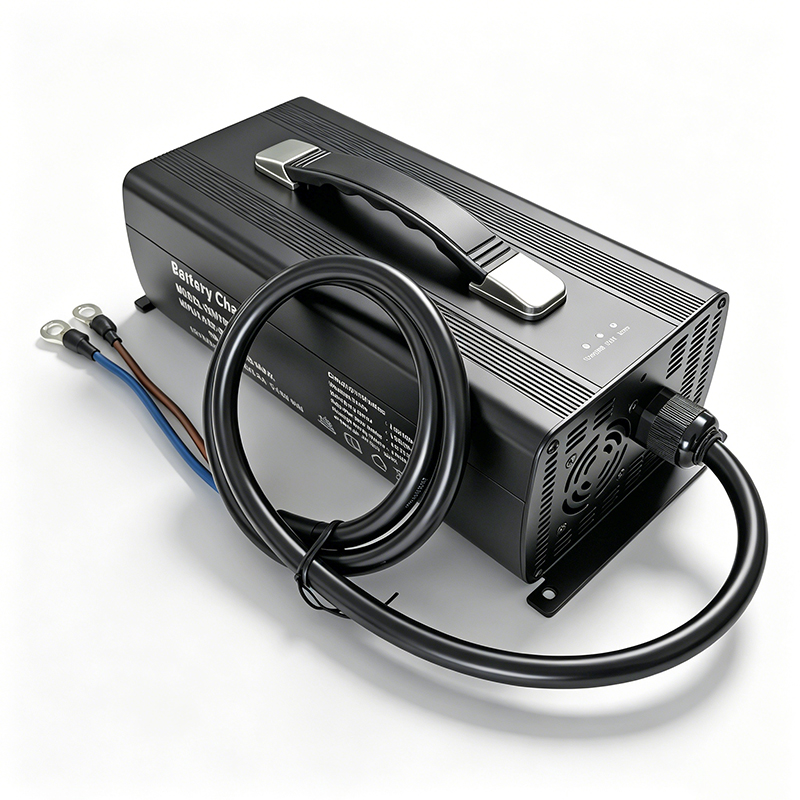

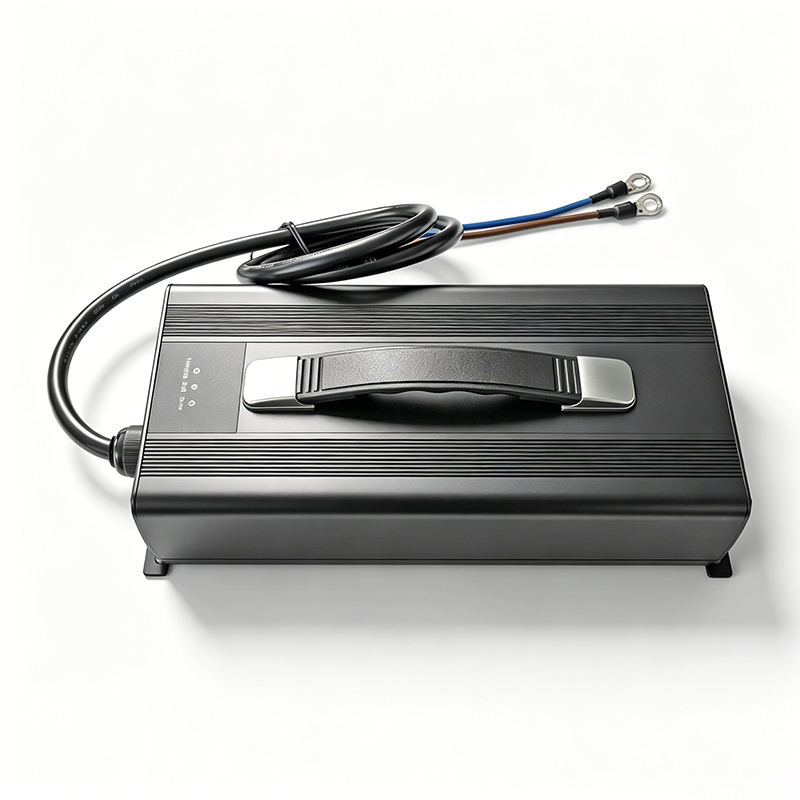

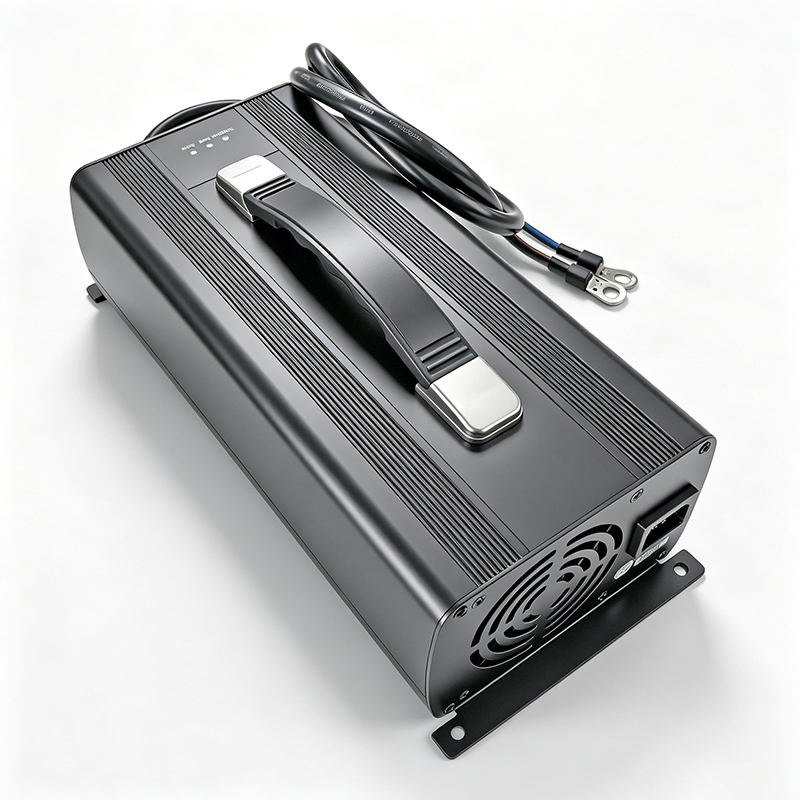

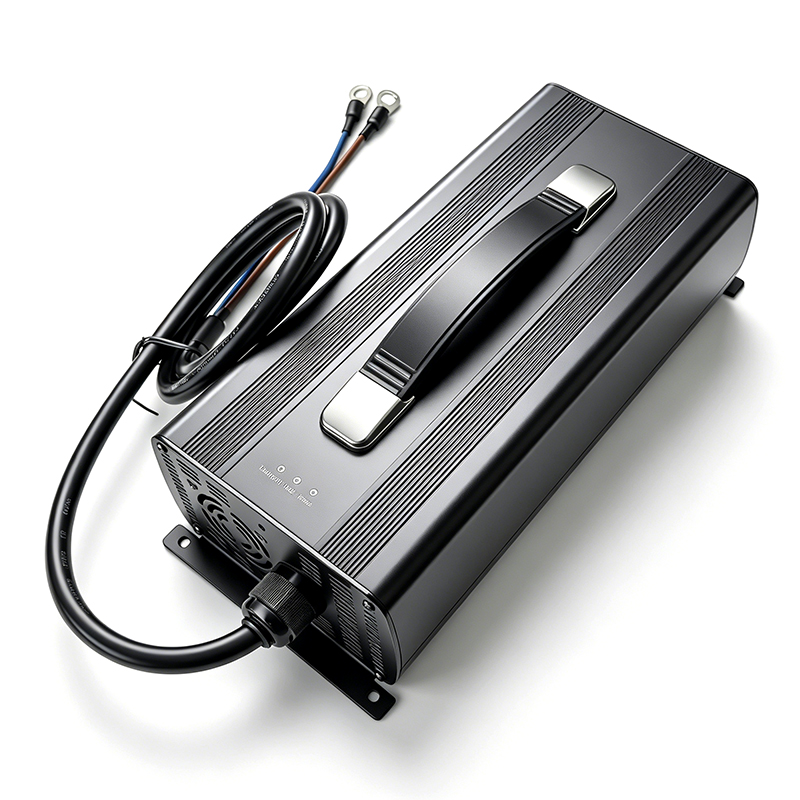

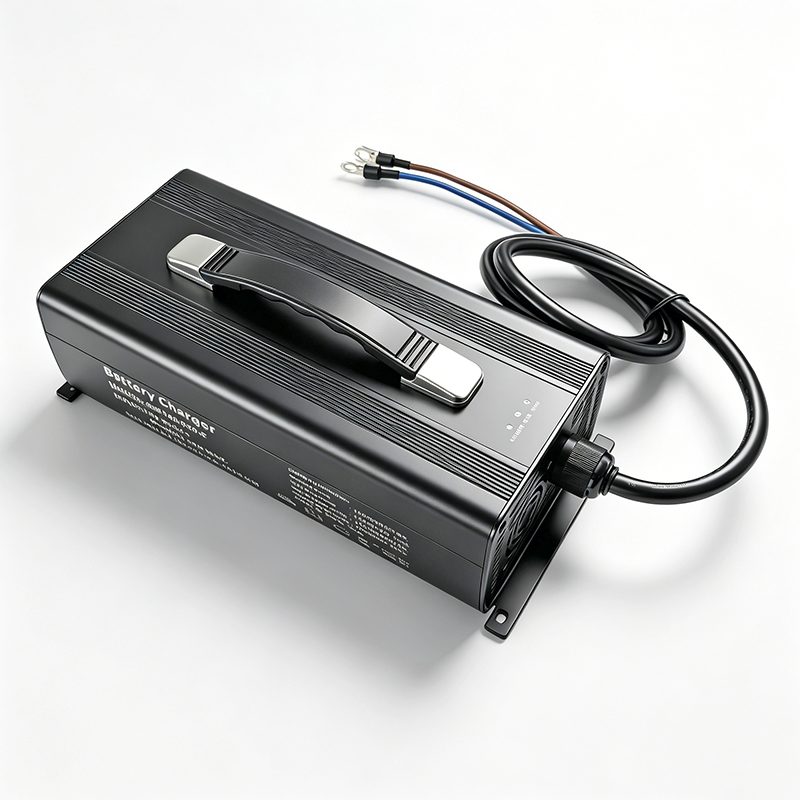

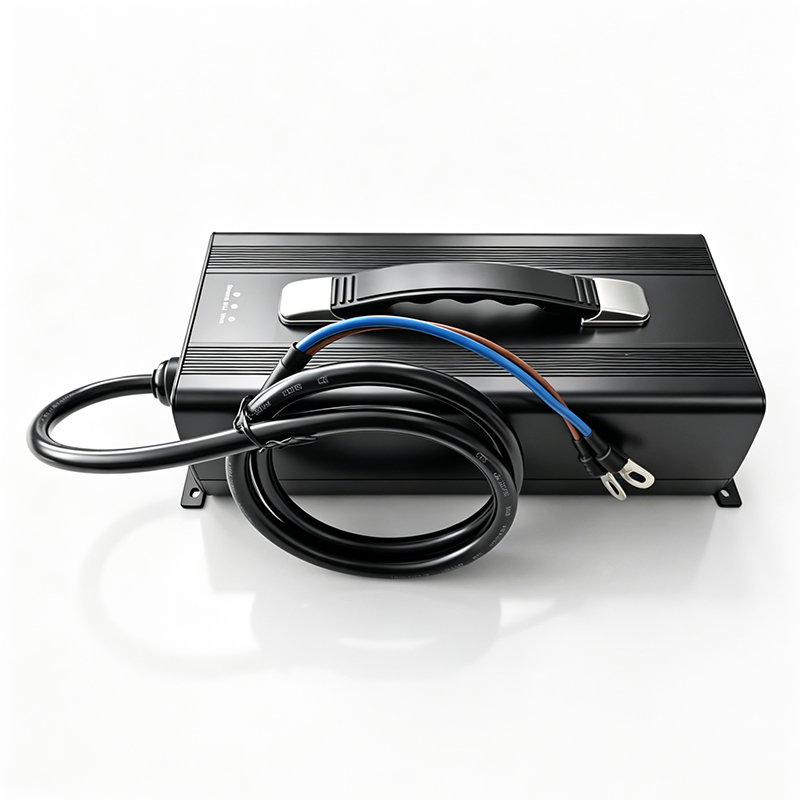

1200W Battery Charger 84V 14a Smart Charger for 20S 72V 74V Electric Motorcycle Robots RVS Campers Lithium ion batteries Pack

Quick Detail:
  Brand Name:QUAWIN
  Model Number:QW740-140-L
  Use:20S 72V 74V lithium ion batteries or Lithium polymer battery pack
  Type:Electric
  Place of Origin:Guangdong China (Mainland)
  Battery charger:automatic battery charger 84V
  Color:Black/Army green
  Shell Material:Aluminium alloy
  Additional functionality:LED display
  Input voltage:100-240VAC 50/60Hz with PFC
  Output voltage:84V
  Output current:14a(Max)
  Output power:1,176W
  Charge mode:CC—CV(Constant Current—Constant Voltage)
  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  20S 72V 74V lithium ion batteries or Lithium polymer battery pack

Features:
  • Charging mode:CC—CV(Constant Current—Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Efficiency(at 100% load):≧90%
  • Operating temperature:-20℃ ~ 45℃
  • Storage temperature:-40℃ ~ 85℃
  • Operating humidity:5%~90%RH

Specification:
  • Input:100-240VAC 50/60Hz with PFC
  • Output: DC 84V
  • Charging current: 14a(Max)
  • Dimensions (mm): 314*138*86
  • Weight: 3650±50g(only body)

Safety protections:

  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • Reverse polarity protection
  • Anti-revert current protection
  • Anti-spark protection

LED Indicator:

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH
