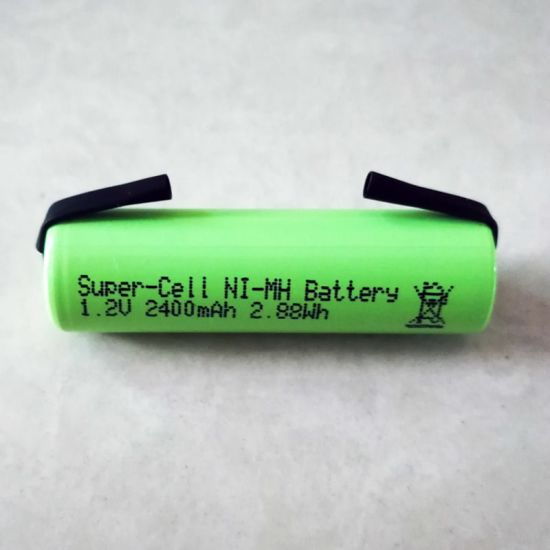

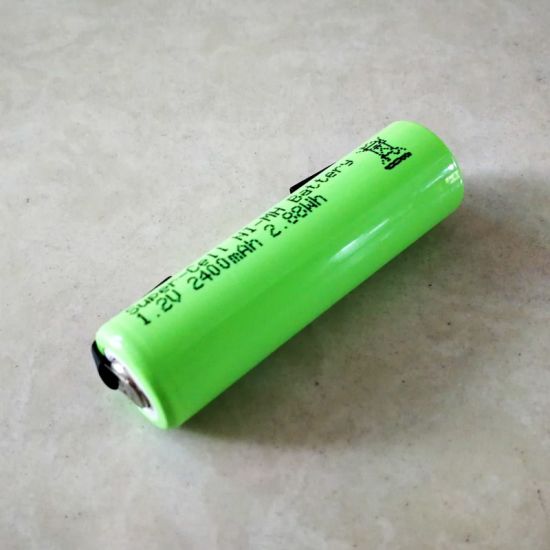

1.2V AA NiMH Rechargeable Battery with Soldering Lugs (2400mAh)

Model Number:NB012-2400-NE(AA)
Battery type:AA NiMH Rechargeable Battery
Nominal Voltage:1.2V
Nominal Capacity:2400mAh
Size:Φ14.5*50.5mm
Weight:35g
Availability:
Quantity:
  • NB012-2400-NE(AA)

  • QUAWINTEC/OEM

  • 8507809090

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • Netrual packing/Custom box with less than 10KGS

  • 500PCS

  • 5000000/Month

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:NB012-2400-NE(AA)
Type:AA NiMH Rechargeable Battery
Place of Origin:Guangdong China (Mainland)
Certificate:CE/RoHS/UN38.3/MSDS

Nominal Voltage:1.2V
Nominal Capacity:2400mAh
Cell:NiMH AA
Charging current:240mA

Pack:Green PVC Shrink tube
Size:Φ14.5*50.5mm
Weight:35g

Composed Type:Single battery
Delivery time:7-30 days
Cycle Life:500-800 Times
Warranty:12 months
Packing:Antistatic bag /white box and standard export carton/customized


Packaging & Delivery :
. Netural labels,Polybag,PVC,Color box,Customised package
. Netrual packing/Custom box with less than 10KGS
. Delivery Detail:sample within 6 work days,15~30 days for bulk order


Product Advantages:
 1). Green product
 2). Long standby time
 3). One year warranty
 4). Excellent safety performance
 5). Excellent storage performance and low self-discharge rate
 6). Overcharge testing passed
 7). Over discharge testing passed
 8). 1.2m drop testing passed


NOTE:
 1.The capacities obtained at 0.1C charge&0.2C discharge at the temperature of 25ºC
 2.recommends for standard charing:0ºC~45ºC and for discharge;-20ºC~+50ºC,
 3.Strict controlrecommended over rapid charge.


Spotlight:
 1). Provide both single cells and battery packs
 2). 100% inspection before delivery
 3). Inspects inner resistance,discharge platform and self-discharge
 4). tablished quality control systems under ISO9001
 5). customized packs, tags,labels,plugs,connectors,over current protection, temperature contol protection are available


Shipping terms:
1).Samples checking: sending by Express ( DHL/UPS/FEDEX/TNT,by air)
2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.
3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.


Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway


Model Nominal
Voltage(V)
Typical
Capacity(mAh)
Dimensions
(mm)
Standard Charge(mA) Weight
Approx(g)
1/3AAA 1.2 180 10.5×16.0 18 5
2/3AAA 1.2 300 10.5×29.0 30 8
2/3AAA 1.2 400 10.5×29.0 40 9
AAA 1.2 600 10.5×44.5 60 10
AAA 1.2 700 10.5×44.5 70 11
AAA 1.2 800 10.5×44.5 80 12
AAA 1.2 850 10.5×44.5 85 13
AAA 1.2 900 10.5×44.5 90 13
AAA 1.2 950 10.5×44.5 95 14
AAA 1.2 1000 10.5×44.5 100 14
1/2AA800 1.2 800 14.5×25.0 80 15
2/3AA800 1.2 800 14.5×28.0 80 15
4/5AA1200 1.2 1200 14.5×43.0 120 23
AA 1.2 1200 14.5×50.5 120 25
AA 1.2 1300 14.5×50.5 130 26
AA 1.2 1500 14.5×50.5 150 28
AA 1.2 1600 14.5×50.5 160 28
AA 1.2 1800 14.5×50.5 180 29
AA 1.2 2000 14.5×50.5 200 29
AA 1.2 2100 14.5×50.5 210 30
AA 1.2 2200 14.5×50.5 220 30
AA 1.2 2300 14.5×50.5 230 31
AA 1.2 2400 14.5×50.5 230 31
AA 1.2 2450 14.5×50.5 245 31
AA 1.2 2500 14.5×50.5 250 31
AA 1.2 2600 14.5×50.5 260 31
AA 1.2 2700 14.5×50.5 270 32
2/3A 1.2 1100 17.0×28.0 110 21
2/3A 1.2 1200 17.0×28.0 120 21
4/5A 1.2 2000 17.0×43.0 200 32
4/5A 1.2 2100 17.0×43.0 210 32
4/5A 1.2 2200 17.0×43.0 220 32
A2500 1.2 2500 17.0×50.0 250 40
A2700 1.2 2700 17.0×50.0 270 42
4/3A3600 1.2 3600 17.0×67.0 360 50
4/3A3800 1.2 3800 17.0×67.0 380 52
SC2500 1.2 2500 23.0×43.0 250 58
SC3000 1.2 3000 23.0×43.0 300 60
SC3300 1.2 3300 23.0×43.0 330 62
C3500 1.2 3500 25.8×51.0 350 70
C4000 1.2 4000 25.8×51.0 400 77
C4500 1.2 4500 25.8×51.0 450 78
C5000 1.2 5500 25.8×51.0 500 88
D8000 1.2 8000 33.0×61.8 800 145
D9000 1.2 9000 33.0×61.8 900 155
D10000 1.2 10000 33.0×61.8 1000 165
F13000 1.2 13000 33.0×90.5 1300 240
F14000 1.2 14000 33.0×90.5 1400 245
F15000 1.2 15000 33.0×90.5 1500 255
9V 9.0 160 17.5×26.5×48.5 16 42
9V 9.0 250 17.5×26.5×48.5 25 48
