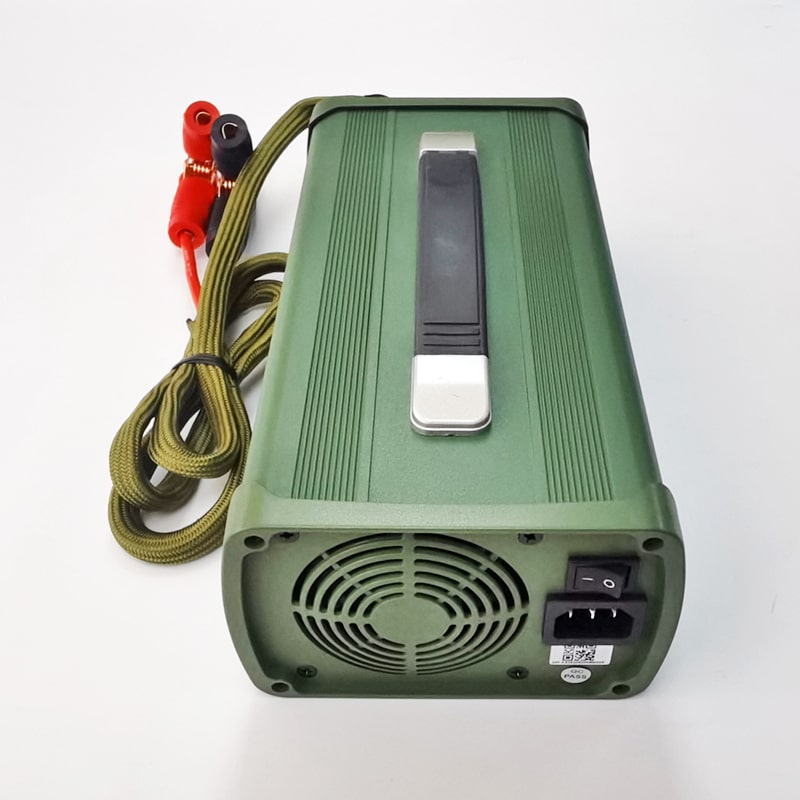

900W Super Battery Charger 86.4V/87.6V 8a 9a 10a LiFePO4 Smart Charger For 24S 72V 76.8V Portable Power Station Batteries Pack

  Brand Name:QUAWIN

  Model Number:QW768-100-FM

  Use:24S 72V/76.8V Lifepo4 battery pack

  Type:Electric

  Place of Origin:Guangdong China (Mainland)

  Color:Black/Army green

  Shell Material:Aluminium alloy

  Input voltage:100-240VAC 50/60Hz with PFC

  Output voltage:87.6V

  Output current:10a(Max)

  Output power:876W

  Special Process: Spray Three Proof Paint

  Electromagnetic compatibility: meets the requirements of GJB

  Reliability: MTBF≧3000H

  Optional features:The battery pack with super capacitor can be charged from 0V

  Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:
  24S 72V/76.8V Lifepo4 battery pack

Features:

  • Charging mode:CC—CV(Constant Current—Constant Voltage)

  • High efficiency and low power consumption

  • Stabilized output and low noice

  • Efficiency(at 100% load): ≧90%

  • Operating temperature:-40℃ ~ 65℃

  • Storage temperature:-40℃ ~ 85℃

  • Operating humidity:5%~90%RH

  • It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.

Specification:

  • Input: 100-240VAC 50/60Hz with PFC

  • Output: DC 87.6V

  • Charging current: 10a(Max)

  • Dimensions (mm): 285*140*90

  • Weight: 2900±50g(only body)

Safety protections:

  • Over Voltage protection

  • Short Circuit protection

  • Polarity error protection

  • Over power protection

  • Overheating protection

LED Indicator:
  Waiting Mode:LED(GREEN)  ON
  Charging Mode:LED(BLUE)   FLASH
  Full Charged Mode:LED(GREEN)  ON
  Charge Error Mode:LED(RED)   FLASH

Call us to know more details datasheet.
