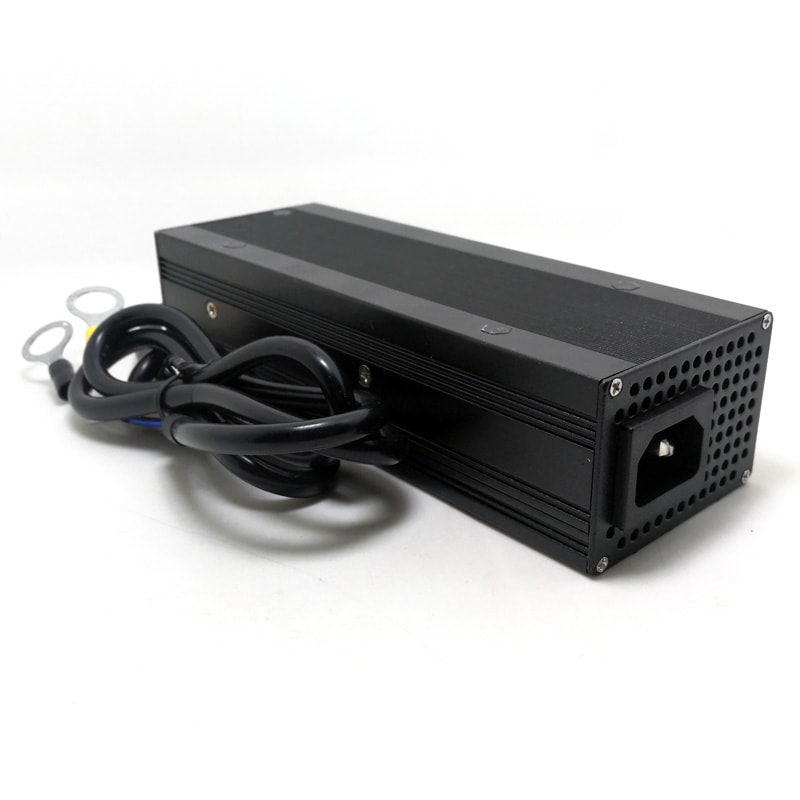

Factory Direct Sale DC 50.4V 5a 250W charger for 12S 42V 44.4V Li-ion/Lithium Polymer battery with PFC

Model:QW444-050-L
Input voltage:100-240VAC 50/60Hz
Output voltage:50.4V
Output current:5a(Max)
Dimensions (mm): 204*88*48
Availability:
Quantity:
  • QW444-050-L

  • QUAWINTEC/OEM

  • 8504401990

  • Shenzhen, China

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • white box/polybags/at your request outer package:carton

  • 200PCS

  • 50000 Pieces

Quick Detail:

Brand Name:QUAWIN

Model Number:QW444-050-L

Use:12S 42V 44.4V Li-ion or Li-polymer battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 50.4V

Color:Black

Shell Material:Aluminium alloy

Input voltage:100-240VAC 50/60Hz with PFC

Output voltage:50.4V

Output current:5a(Max)

Output power:252W

Charge mode:CC—CV(Constant Current—Constant Voltage)

Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization


Packaging & Delivery :

20pcs/Carton
Carton size: 580*480*185mm

Delivery Detail:sample within 7 work days,15~25 days for bulk order


Specifications:
 12S 42V 44.4V Li-ion or Lithium Polymer battery PACK

Features:
 • Charging mode:CC-CV(Constant Current-Constant Voltage)
 • High efficiency and low power consumption
 • Stabilized output and low noice
 • Efficiency(at 100% load): >=90%
 • Operating temperature:-20ºC ~ 45ºC
 • Storage temperature:-40ºC ~ 85ºC
 • Operating humidity:5%~90%RH


Specification:
 • Input: 100-240VAC 50/60Hz with PFC
 • Output: DC 50.4V
 • Charging current: 5a(Max)
 • Dimensions (mm): 204*88*48
 • Weight: 1000g(only body)


Safety protections:
 • Over Voltage protection
 • Short Circuit protection
 • Polarity error protection
 • Over power protection


LED Indicator:
 Waiting Mode:LED(GREEN)  ON
 Charging Mode:LED(BLUE)   FLASH
 Full Charged Mode:LED(GREEN)  ON
 Charge Error Mode:LED(RED)   FLASH


Call us to know more details datasheet.

(A Typical Model)
Model Input Voltage(V) Battery Voltage(V) Charging Voltage(V) Charging Current(A)
QW128-150-F (LiFePO4) AC 100~264V 12.8(4S) 14.6 15
QW256-080-F 25.6(8S) 29.2 8
QW384-050-F 38.4(12S) 43.8 5
QW512-040-F 51.2(16S) 58.4 4
QW640-030-F 64(20S) 73 3
QW768-025-F 76.8(24S) 87.6 2.5
QW148-150-L (Lithium) 14.8(4S) 16.8 15
QW259-080-L 25.9(7S) 29.4 8
QW370-050-L 37(10S) 42 5
QW481-040-L 48.1(13S) 54.6 4
QW629-030-L 62.9(17S) 71.4 3
QW740-025-L 74(20S) 84 2.5
QW120-150-S (Lead Acid) 12(1S) 14.7 15
QW240-080-S 24(2S) 29.4 8
QW360-050-S 36(3S) 44.1 5
QW480-040-S 48(4S) 58.8 4
QW600-030-S 60(5S) 73.5 3
QW720-025-S 72(6S) 88.2 2.5
