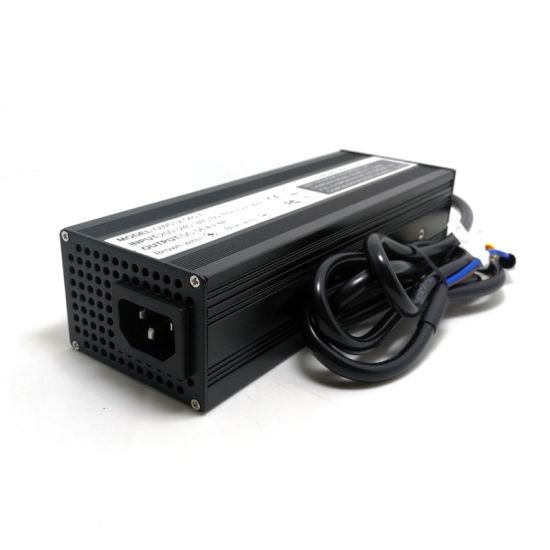

250W Smart Battery Chargers 28.8V/29.2V 7a 8a Battery Charger for 8S 24V 25.6V 7a 8a LiFePO 4 LiFePO4 Battery Packs

Brand Name:QUAWIN

Model Number:QW256-080-F

Use:8S 24V/25.6V Lifepo4 battery pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 29.2V

Color:Black

Shell Material:Aluminium alloy

Input voltage:100-240VAC 50/60Hz with PFC

Output voltage:29.2V

Output current:8a(Max)

Output power:233.6W

Charge mode:CC—CV(Constant Current—Constant Voltage)

Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized

Packaging & Delivery:

Specifications:

8S 24V/25.6V Lifepo4 battery pack

Features:

• Fully auto CC +CV(H)+CV(L) charging process;

• High efficiency and low power consumption

• Stabilized output and low noice

• Efficiency(at 100% load): ≧92%

• Operating temperature:-20℃ ~ 45℃

• Storage temperature:-40℃ ~ 85℃

• Operating humidity:5%~90%RH

Specification:

• Input: 100-240VAC 50/60Hz with PFC

• Output: DC 29.2V

• Charging current: 8a(Max)

• Dimensions (mm): 204*88*48

• Weight: 580±10g(only body)

Safety protections:

• Over Voltage protection

• Short Circuit protection

• Polarity error protection

• Over power protection

• Overheating protection

LED Indicator:
 Waiting Mode:LED(GREEN)  ON
 Charging Mode:LED(BLUE)   FLASH
 Full Charged Mode:LED(GREEN)  ON
 Charge Error Mode:LED(RED)   FLASH

Call us to know more details datasheet.
